4.3 inch Resistive Touch TFT Display RGB LCD Module Description
The following is an introduction to the 4.3-inch TFT LCD display screen, which is equipped with a resistive touch screen with a resolution of 480x272, using ST7282T2 driver IC, and a 40 pin RGB interface:
Product Name: 4.3 Inch TFT LCD Display with Resistive Touch
Display specifications:
-Size: 4.3 inches, suitable for various portable and embedded applications.
- Resolution: 480x272 pixels, providing clear image and text display.
-Display mode: Color TFT, transmissive, with a regular white background.
Touch screen technology:
-Touch screen type: Resistive touch screen, supports precise touch input, allows the use of a stylus or finger for operation.
Driver IC and Interface:
-Driver IC: ST7282T2, providing stable display performance and color reproduction.
-Interface type: 40 Pin RGB interface, supports 24 bit color display capability, suitable for various microcontrollers and display control systems.
Brightness and Contrast:
-Brightness: The typical brightness is 250 cd/m ², suitable for indoor and outdoor environments.
-Contrast: High contrast ratio (250:1) ensures vivid colors and clear details in the image.
Work environment:
-Working temperature: -20 ° C to 70 ° C, suitable for various environmental conditions.
-Storage temperature: -30 ° C to 80 ° C, ensuring performance stability under extreme temperatures.
Design features:
-Size and Weight: The module size is 105.5 x 67.1 x 4.05 mm, which is lightweight and easy to integrate and install.
-Perspective: Provides a wide perspective, with a left/right/up/down angle of 80 degrees, ensuring a good visual experience from different angles.
Application scenarios:
-Suitable for various applications such as industrial control systems, home automation, portable electronic products, especially those that require high contrast and good viewing angles.
Customized services:
-Provide FPC or ribbon customization, optical bonding touch panels, and GUI or interface customization to meet specific design requirements.
This 4.3-inch TFT LCD display, with its high resolution, high brightness, high contrast, and flexible interface options, is an ideal choice for a variety of applications, especially suitable for outdoor devices that require clear display in sunlight.
Product Features
| Keywords: | 4.3 Inch TFT LCD Display | Touch Screen: | Resistive Touch Screen |
| Resolution: | 480x272 | Cover Glass: | ODM |
| Interface: | RGB | Surface Luminance: | 250Cd/m2 |
| LED Lifetime: | 40,000 Hours | Pins: | 40 Pins |
| Viewing Direction: | 6 O'clock | Connection: | ZIF / Plugging |
| Operating Temp.: | –20℃ To +70℃ | Vop: | 3V - 3.6V, Typical 3.3V |

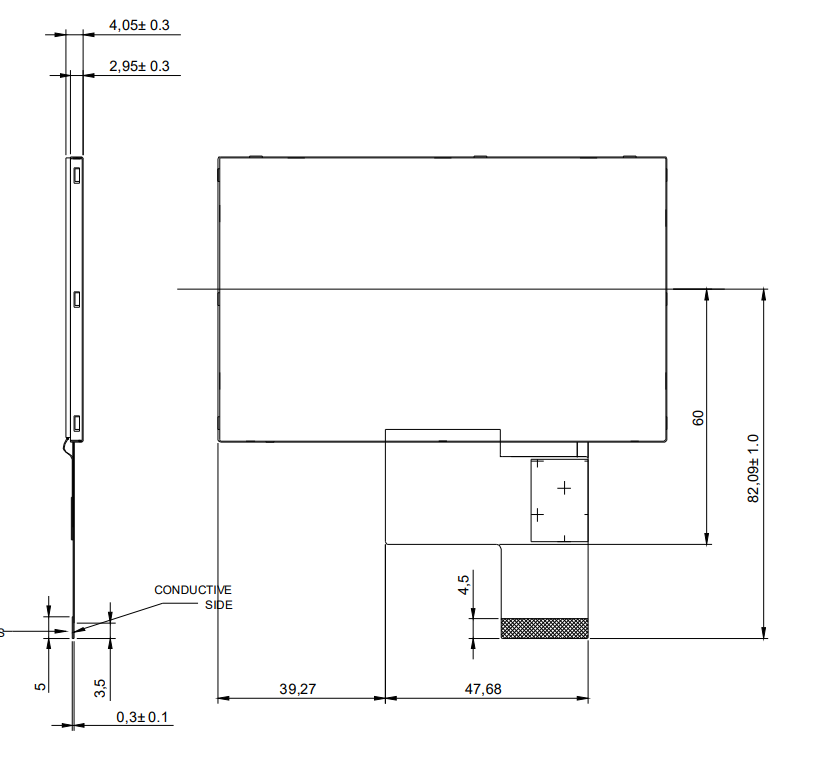

4.3 inch Resistive Touch TFT Display RGB LCD Module Drawing
Interface Pin Definition
| No. | Pin | I/O | Description |
| 1 | LED-K | I | LED Cathode |
| 2 | LED-A | I | LED Anode |
| 3 | VSS | I | Power Ground |
| 4 | VDD | I | Power Source |
| 5 | R01 | I | RED Data Signal (LSB) |
| 6 | R02 | I | RED Data Signal |
| 7 | R03 | I | RED Data Signal |
| 8 | R04 | I | RED Data Signal |
| 9 | R05 | I | RED Data Signal |
| 10 | R06 | I | RED Data Signal |
| 11 | R07 | I | RED Data Signal |
| 12 | R08 | I | RED Data Signal |
| 13 | G01 | I | GREEN Data Signal(LSB) |
| 14 | G02 | I | GREEN Data Signal |
| 15 | G03 | I | GREEN Data Signal |
| 16 | G04 | I | GREEN Data Signal |
| 17 | G05 | I | GREEN Data Signal |
| 18 | G06 | I | GREEN Data Signal |
| 19 | G07 | I | GREEN Data Signal |
| 20 | G08 | I | GREEN Data Signal |
| 21 | B01 | I | BLUE Data Signal(LSB) |
| 22 | B02 | I | BLUE Data Signal |
| 23 | B03 | I | BLUE Data Signal |
| 24 | B04 | I | BLUE Data Signal |
| 25 | B05 | I | BLUE Data Signal |
| 26 | B06 | I | BLUE Data Signal |
| 27 | B07 | I | BLUE Data Signal |
| 28 | B08 | I | BLUE Data Signal |
| 29 | VSS | I | Power Ground |
| 30 | DLCK | I | Clock Signal to Sample each date |
| 31 | DISP | I | Display ON/OFF Signal |
| 32 | HSYNC | I | Horizontal Synchronizing Signal |
| 33 | VSYNC | I | Vertical Synchronizing Signal |
| 34 | DE | I | Input Data enable control |
| 35 | NC | - | Set Open |
| 36 | GND | I | Power Ground |
| 37 | XR | I | Touch Panel PIN |
| 38 | YD | I | Touch Panel PIN |
| 39 | XL | I | Touch Panel PIN |
| 40 | YU | I | Touch Panel PIN |

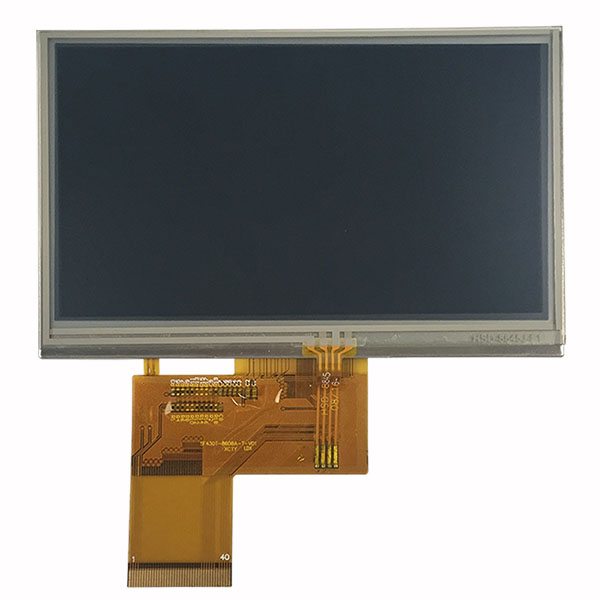

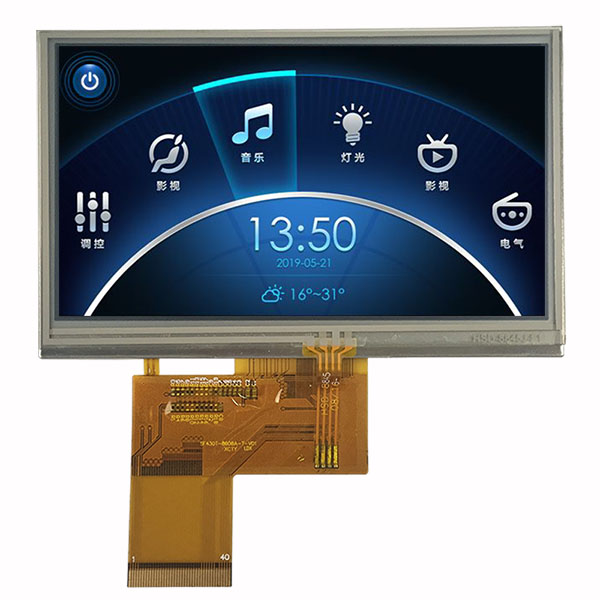

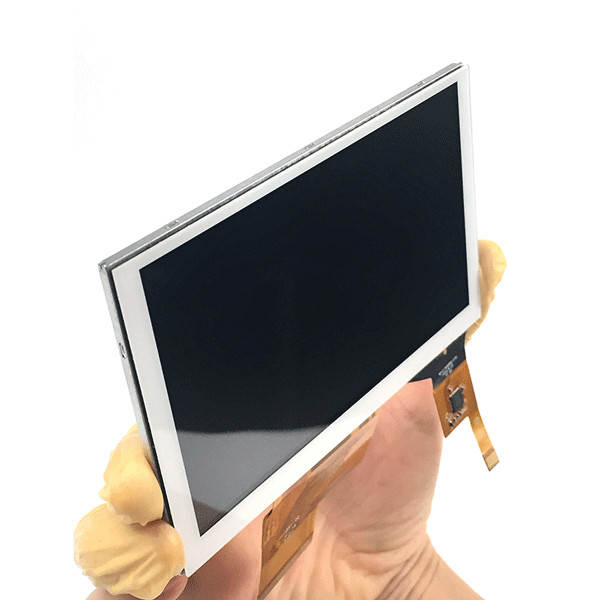

4.3 inch Resistive Touch TFT Display RGB LCD Module Real Product Image
