152x152 Dots Resolution 1.5 Inch E Ink Display MCU Interface EPD

Brand Name : SAEF

Model Number : SFEPD154H-7003A01

Certification : ISO9001 / ISO14000

Place of Origin : ShenZhen / China

MOQ : 3 pcs

Price : Reference price, Price is negotiable based on order lot quantity

Payment Terms : L/C, , T/T, Western Union

Supply Ability : 3000K pcs per month

Delivery Time : 3-5 weeks

Packaging Details : Standard Exportation Package

Product : 1.54 inch EPD

Resolution : 152x152 Dots Resolution

Display Mode : Active Matrix Electrophoretic Display(AM EPD)

Optics : All Viewing Angles

Outline Dim. : 31.80 (H) × 37.32(V) ×1.14(D) mm

Active Area : 27.512 (H) × 27.512 (V) mm

Pixel Pitch : 0.181(H) × 0.181(V) mm

Pin number : 24 pins

Interface : MCU

Compliance : REACH & RoHS Compliant

Contact Now



E-ink Display 1.54 inch, EPD 1.54 inch Screen Description





SAEF Technology SFEPD154H-7003A01 is an Active Matrix Electrophoretic Display(AM EPD), with interface and a reference system design. The 1.54” active area contains 152x152 pixels, and has 2-bit full display capabilities. The module is a TFT-array driving electrophoretic display, with integrated circuits including gate buffer, source buffer, MCU interface, timing control logic, oscillator, DC-DC, SRAM, LUT, VCOM. Module can be used in portable electronic devices, such as Electronic Shelf Label (ESL) System.



Features

◆ 152×152pixels display

◆ White reflectance above 30%

◆ Contrast ratio above 10:1

◆ Ultra wide viewing angle

◆ Ultra low power consumption

◆ Pure reflective mode

◆ Bi-stable display

◆ Ultra Low current deep sleep mode

◆ On chip display RAM

◆ Waveform stored in On-chip OTP

◆ Serial peripheral interface available

◆ On-chip oscillator

◆ On-chip booster and regulator control for generating VCOM, Gate and Source driving voltage

◆ I 2C signal master interface to read external temperature sensor



Item of general information Contents
Screen Size 1.54 inch
Display Mode Active Matrix EPD
Display Resolution 152(H)×152(V) Pixels
Active Area 27.512 (H) × 27.512 (V) mm
Pixel Pitch 0.181(H) × 0.181(V)
PixelConfiguration Rectangle
Outline Dimension 31.80 (H) × 37.32(V ×1.14(D) mm
Weight 2.7 g
Logic supply voltage 3.0V typical
Operation Temperature 0°C to +35°C
Storage Temperature -25°C to +60°C
Interface MCU
Compliance REACH & RoHS Compliant





Application



Electronic Shelf Label System





Pin Definition



Pin1,    NC     Do not connect with other NC pins

Pin2,    GDR   /  O  /    N-Channel MOSFET Gate Drive Control

Pin3,    RESE    /  I  /     Current Sense Input for the Control Loop

Pin4,    NC     Do not connect with other NC pins

Pin5,    VDHR   /  C  /    Positive Source driving voltage 1

Pin6,    TSCL    /  O  /    I2C Interface to digital temperature sensor Clock pin

Pin7,    TSDA    /  I/O  /    I2C Interface to digital temperature sensor Data pin

Pin8,     BS    /  I  /      Bus Interface selection pin

Pin9,     BUSYN    / O /     Busy state output pin

Pin10,    RSTN    / I /     Reset signal input. Active Low.

Pin11,    D/C    /  I  /      Data /Command control pin

Pin12,    CSB    /  I  /     Chip select input pin

Pin13,     SCL    / I  /     Serial Clock pin (SPI)

Pin14,     SDA    /  I  /     Serial Data pin (SPI)

Pin15,     VDD    /  P  /    Power Supply for interface logic pins

Pin16,     VDD    /  P  /    Power Supply for the chip

Pin17,     VSS    /  P  /    Ground

Pin18,     VDDD    /  C  /     Core logic power pin VDDD can be regulated internally from VDD. A capacitorshould be connected between VDDD and VSS under all circumstances

Pin19,    VPP    /  P  /     Power Supply for OTP Programming

Pin20,     VSH    / C  /    Positive Source driving voltage 2

Pin21,     VGH    / C  /    Positive Gate driving voltage

Pin22,     VSL    / C   /    Negative Source driving voltage

Pin23,     VGL    / C  /     Negative Gate driving voltage

Pin24,     VCOM    /  C  /    VCOM driving voltage





I = Input Pin, O =Output Pin, I/O = Bi-directional Pin (Input/Output), P = Power Pin, C = Capacitor Pin

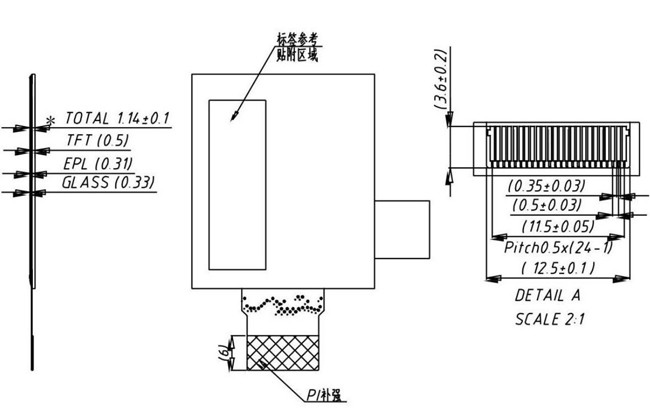

E-ink Display 1.54 inch, EPD 1.54 inch Product Drawing



152x152 Dots Resolution 1.5 Inch E Ink Display MCU Interface EPD



152x152 Dots Resolution 1.5 Inch E Ink Display MCU Interface EPD

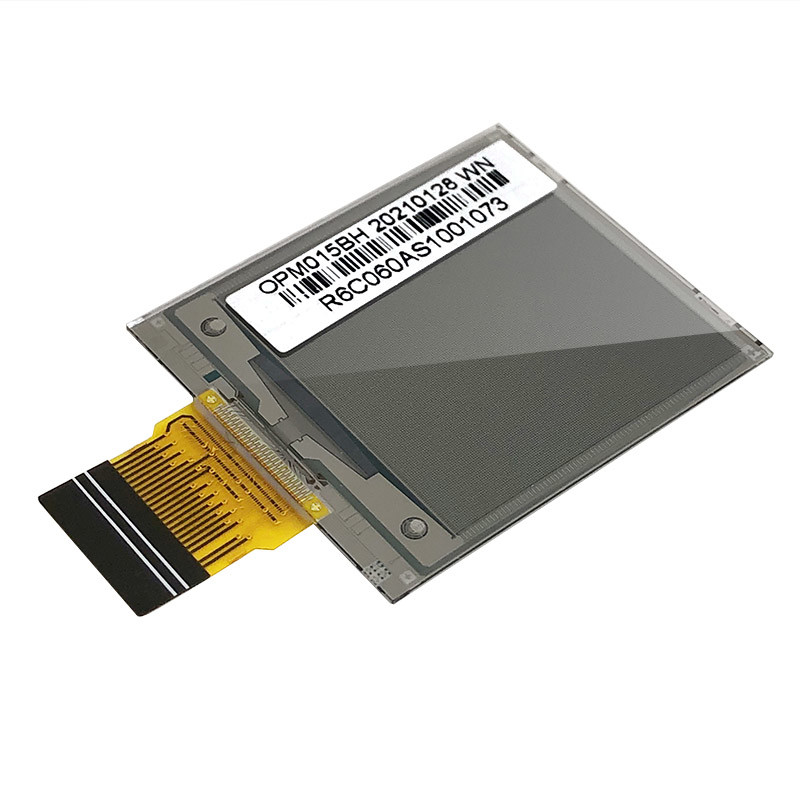

E-ink Display 1.54 inch, EPD 1.54 inch Product Image



152x152 Dots Resolution 1.5 Inch E Ink Display MCU Interface EPD152x152 Dots Resolution 1.5 Inch E Ink Display MCU Interface EPD152x152 Dots Resolution 1.5 Inch E Ink Display MCU Interface EPD152x152 Dots Resolution 1.5 Inch E Ink Display MCU Interface EPD



FACTORY AND FACILITIES

152x152 Dots Resolution 1.5 Inch E Ink Display MCU Interface EPD



152x152 Dots Resolution 1.5 Inch E Ink Display MCU Interface EPD152x152 Dots Resolution 1.5 Inch E Ink Display MCU Interface EPD

152x152 Dots Resolution 1.5 Inch E Ink Display MCU Interface EPD152x152 Dots Resolution 1.5 Inch E Ink Display MCU Interface EPD152x152 Dots Resolution 1.5 Inch E Ink Display MCU Interface EPD

152x152 Dots Resolution 1.5 Inch E Ink Display MCU Interface EPD152x152 Dots Resolution 1.5 Inch E Ink Display MCU Interface EPD

152x152 Dots Resolution 1.5 Inch E Ink Display MCU Interface EPD152x152 Dots Resolution 1.5 Inch E Ink Display MCU Interface EPD152x152 Dots Resolution 1.5 Inch E Ink Display MCU Interface EPD
