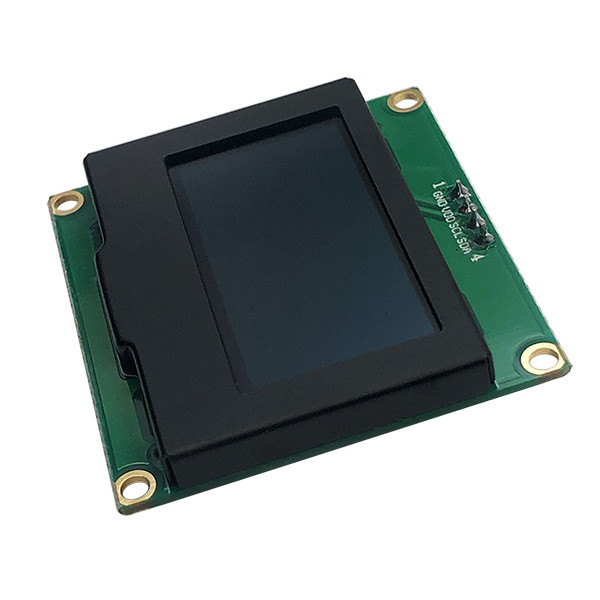

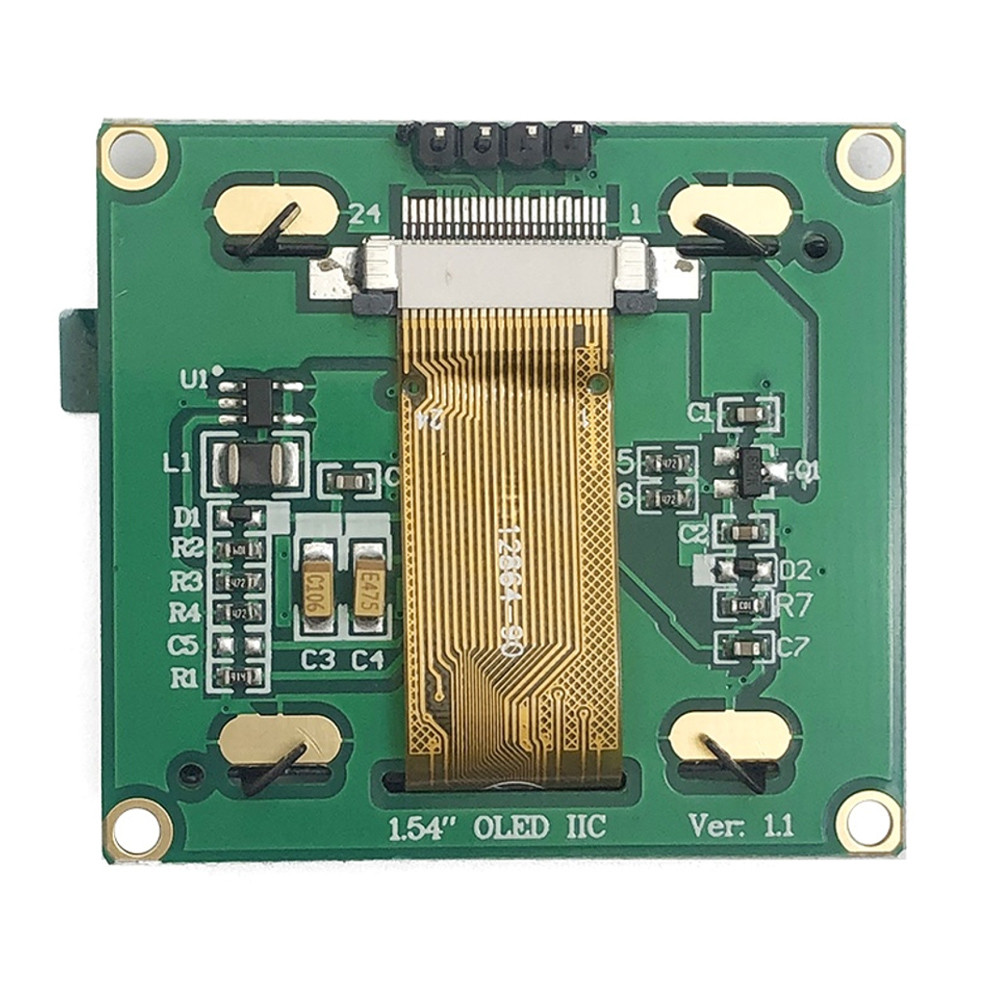

1.54 Inch Graphic OLED Display SSD1309 128x64 Dots Resolution I2C Interface

  • 1
  • 2
  • 3

Brand Name : SAEF

Model Number : SFOM154YZ4-12864WB-01

Certification : ISO9001 / ISO14000

Place of Origin : ShenZhen / China

MOQ : 3 pcs

Price : Price is negotiable based on order lot quantity

Payment Terms : L/C, T/T, Western Union, Paypal

Supply Ability : 3000K pcs per month

Delivery Time : 1-4 weeks

Packaging Details : Standard Exportation Package

Product : 1.54" Inch OLED Screen

Resolution : 128x64 Dots Resolution

Display Mode : Passive Matrix Display

Interface : I2C

Optics : All Viewing Angles

Outline Dim. : 47.0(L) x 43.0(W) x 13.8(T) mm

Active Area : 35.06(L) x 17.52(W) mm

Pixel Pitch : 0.274 x 0.274 mm

Driving method : 1/64 Duty cycle

Operating Temp : -40°C to +70°C ( Customizable )

Storage Temp. : -40°C to +85°C

Driver IC : SSD1309 or Equivalent

Pin number : 4 Header pins, 7 pins optional

Compliance : REACH & RoHS Compliant

Contact Now

Product Quick Review   (SFOM154YZ4-12864WB-01 Specification.pdf)

►Model No.SFOM154YZ4-12864WB-01

►Type : 1.54" Graphic OLED
►Structure : COG+PCB
►128x64 dots
►IC:SSD1309
►5V Power supply
►1/64duty
►Interface: SPI, I2C

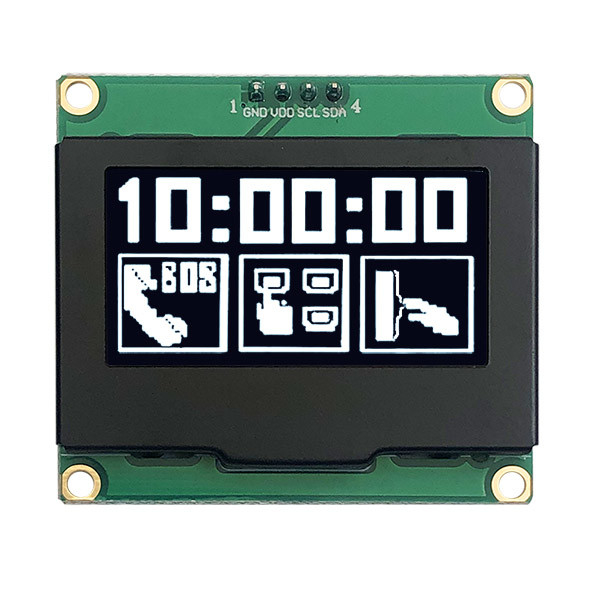

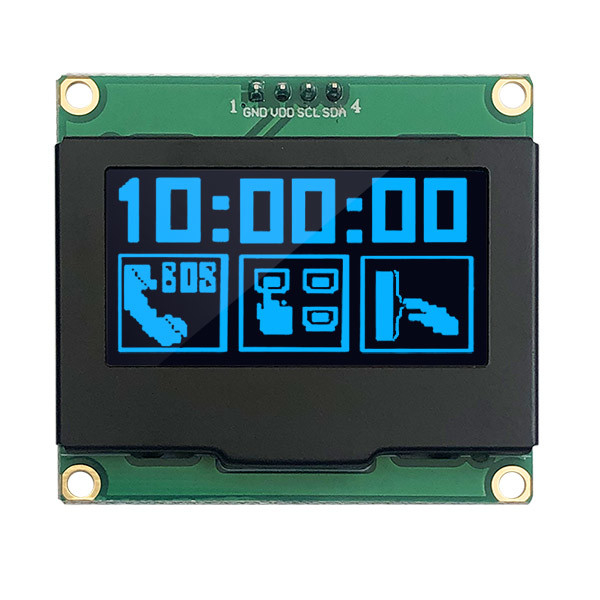

►Display Color: White / Blue



When you need an OLED small display with much brighter, much higher contrast, wider viewing angles and lower current consumption, the SAEF display OLED COB graphic item no. SFOM154YZ4-12864WB-01 is a good choose. This 1.54” OLED module is built-in SSD1309 IC which has outline dimension of 47.0(L) X 43.0(W) X 13.8(T) mm and visible portion of the OLED measures 1.54" diagonal and contains 128x64 pixels. It is able to communicate using SPI and I2C interface.



Product Features



Product: 1.54" Inch OLED Screen
Resolution: 128x64 Dots Resolution
Interface: I2C
Display Mode: Passive Matrix Display
Optics: All Viewing Angles
Outline Dim.: 47.0(L) X 43.0(W) X 13.8(T) Mm
Active Area: 35.06(L) X 17.52(W) Mm
Pixel Pitch: 0.274 X 0.274 Mm
Driving Method: 1/64 Duty Cycle
Operating Temp: -40°C To +70°C ( Customizable )
Storage Temp.: -40°C To +85°C
Pin Number: 4 Header Pins,
Driver IC: SSD1309 Or Equivalent
Compliance: REACH & RoHS Compliant

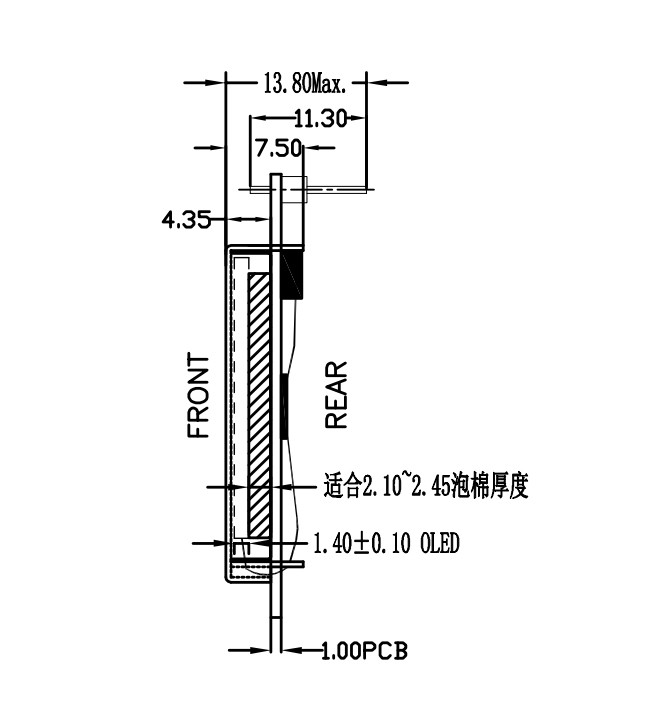

1.54 inch OLED Graphic Display Product Drawing





1.54 Inch Graphic OLED Display SSD1309 128x64 Dots Resolution I2C Interface1.54 Inch Graphic OLED Display SSD1309 128x64 Dots Resolution I2C Interface

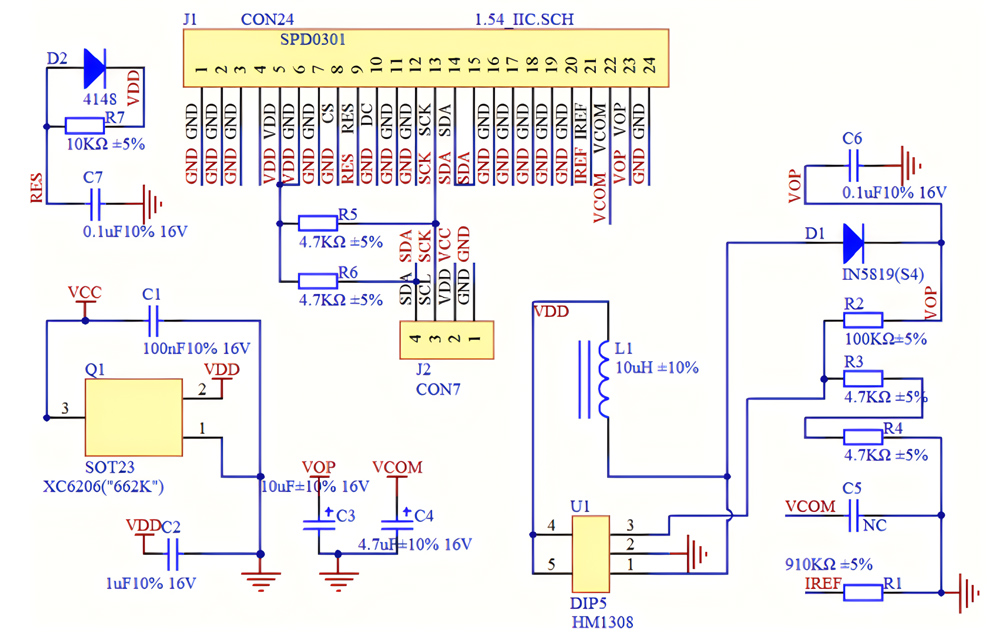

Schematic Diagram



1.54 Inch Graphic OLED Display SSD1309 128x64 Dots Resolution I2C Interface



Interface Pin Function



No. Symbol Function
1 GND Ground
2 VCC Power supply input.
3 SCL When the I2C interface is selected, then D0 serves as the serial clock input pad (SCL) and D1 serves as the serial data input pad (SDAI).
4 SDA





DC Characteristics



Characteristics

 Symbol Conditions Min Typ Max

Unit
Supply Voltage for Logic VDD   1.65 2.8 3.3 V
Supply Voltage for Display VCC   11.5 12 12.5 V
High Level Input VIH   0.8×VDD - - V
Low Level Input VIL   - - 0.2×VDD V
High Level Output VOH IOUT = 100μA, 3.3MHz 0.9×VDD - - V
Low Level Output VOL IOUT = 100μA, 3.3MHz - - 0.1×VDD V

VDD Supply Current

VDD =2.8V, VCC = 12,

IREF = 10uA , No

Panel attached,

Display ON, All ON,



IDD

Contrast = FFh





-



90



110



μA

VCC Supply Current

VDD = 2.8V, VCC =12,

IREF =10uA, No Panel

attached,

Display ON, All ON



ICC





-



450



580



μA

Segment Output

Current,

VDD = 2.8V,

VCC =12V,

IREF=10uA,

Display ON.





ISEG

 Contrast=FFh 280 310 340





μA
Contrast=AFh - 215 -
Contrast=7Fh - 155 -
Contrast=3Fh - 78 -
Contrast=0Fh 20   -



Sleep Mode Current for VDD



IDD, SLEEP

VDD = 1.65V~3.3V, VCC = 7V~16V

Display OFF, No

panel attached



-



-



10



μA



Sleep Mode Current for VCC



ICC, SLEEP

VDD = 1.65V~3.3V, VCC = 7V~16V

Display OFF, No

panel attached



-



-



10



μA



Electrical Specifications



Characteristics

 Symbol Conditions Min Typ Max Unit
Normal mode current consumption   All pixels on - 17 25 mA
Standby mode current consumption   Standby mode 10% pixels on - 0.5 1.5 mA
Normal mode power consumption   All pixels on - 71.5 97.5 mW
Standby mode power consumption   Standby mode 10% pixels on - 6.5 19.5 mW
Brightness Lbr - 90 110 - cd/m2
C.I.E. (White)

(x)

(y)

 C.I.E. 1931

0.24

0.28

0.28

0.32

0.32

0.36


Dark Room Contrast CR - 2000:1 - -

Viewing Angle



   - 160 - - degree



I2C Interface Timing Characteristics



Symbol

 Description Min Max

Unit
tcycle Clock Cycle Time 2.5 - μs
tHSTART Start Condition Hold Time 0.6 - μs
tHD Data Hold Time (for “SDAOUT” Pin) 0



-



ns
Data Hold Time (for “SDAIN” Pin) 300
tSD Data Setup Time 100 - ns
tSSTART

Start Condition Setup Time

(Only relevant for a repeated Start condition)

 0.6 - μs
tSSTOP Stop Condition Setup Time 0.6 - μs
tR Rise Time for Data and Clock Pin   300 ns
tF Fall Time for Data and Clock Pin   300 ns
tIDLE Idle Time before a New Transmission can Start 1.3 - μs



1.54 inch OLED Graphic Display Product Image



1.54 Inch Graphic OLED Display SSD1309 128x64 Dots Resolution I2C Interface

1.54 Inch Graphic OLED Display SSD1309 128x64 Dots Resolution I2C Interface

1.54 Inch Graphic OLED Display SSD1309 128x64 Dots Resolution I2C Interface

1.54 Inch Graphic OLED Display SSD1309 128x64 Dots Resolution I2C Interface
