1.77 Inch TFT Display Manufacturer China 128x160 Dots MPU Interface

  • 1
  • 2

Brand Name : SAEF

Model Number : SF-TS177H-8784A-N

Certification : ISO9001 / ISO14000

Place of Origin : ShenZhen / China

MOQ : 3 pcs

Price : Negotiable based on order lot quantity

Payment Terms : L/C, T/T, Western Union, Paypal

Supply Ability : 3000K pcs per month

Delivery Time : 1-5 weeks

Packaging Details : Standard Exportation Package

Product : 1.77 inch TFT display

Touch screen : optioinal

Resolution : 128x160

Cover Glass Dimension : Customizable

Viewing Direction : 12:00

Interface : mpu 8 bit

Pin number : 20 pins

Connection : Soldering

Surface Luminance : 250 cd/m2

LED lifetime : 40,000 hours

Operating Temp. : -20°C to +70°C

Compliance : REACH & RoHS Compliant

Contact Now

1.77 inch TFT LCD display 8-bit MPU Interface Product Description





Product Quick Review

  • Model No. SF-TS177H-8784A-N
  • 128x160 Dots Resolution
  • 8 bit MPU Interface
  • Driver IC: ILI9163C
  • Viewing Direction: 12H
  • Driving Voltage: 2.8V
  • Touchscreen: NO



Description



SF-TS177H-8784A-N is a 1.77 inch portrait mode TFT LCD module with 128x160 dot resolution. It supports mpu 8 bit interface, widely use in handheld devices, medical devices, and some other small size consumer electronics.  This TFT LCD module is built-in with ILI9163V IC ( compitable with ST7735 IC). supply voltage for analog (Vcc) range from 2.6V to 3.3V, typical value 2.8V. This module is having anti-glare surface panel, view direction 12 o'clock, gray scale inversion 6 o'clock.



SF-TS177H-8784A-N module is a Portrait mode TFT-LCD and it's available as well for resistive touch screen option whose part no. SF-TS177H-8784A-T. The working temperatures is from -20°C to +70°C; its storage temperatures range from -30°C to +80°C.

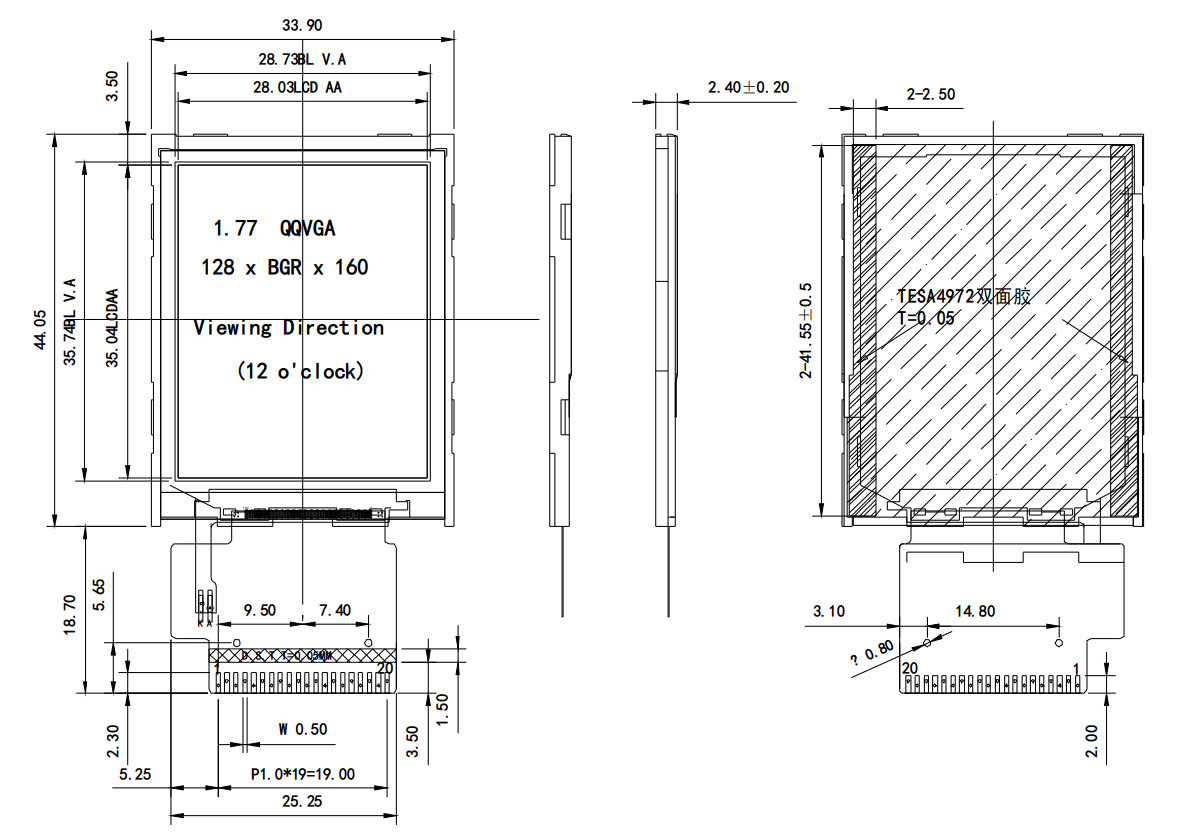

1.77 inch TFT LCD display 8-bit MPU Interface Product Drawing

1.77 Inch TFT Display Manufacturer China 128x160 Dots MPU Interface





PIN Description



NO. PIN NAME I/O Description
1 LED- O LED Cathode
2 LED+ O LED Anode
3 GND I Ground
4 VDD I Power Supply 2.8V Voltage
5 NC - LEAVE OPEN
6 NC - LEAVE OPEN
7 CS I Input pin for chip selection signal
8 RESET I LCM Reset input signal
9 RS I Register select signal
10 /WR I Write strobe signal input pin
11 /RD I Read strobe signal input pin
12-19 DB7-DBO I/O Display Data I/O
20 GND I Ground


Maximum Absolute Limit




Item Symbol Value Unit
Power supply voltage for logic VDD 1.6~3.3 V
Input voltage Vin VDD+0.3 V
Operating temperature Topr -20 to 70 °C
Storage temperature Tstg -30 to 80 °C



DC Characteristics (VDD=2.8V,Ta=25°C)



Item Symbol Min Type Max Unit Test condition
Operating voltage VDD 2.6 2.8 3.3 V -
Supply current IDD - - 5 mA VDD=2.8V,Ta=25°C
Input voltage VIH 0.8VDD - VDD V -
VIL 0 - 0.2VDD V
Input leakage current IIL -1.0 - 1.0 mA VIN=VDD or VSS


Backlight Electrical-optical Characteristics



Item Symbol MIN TYP MAX UNIT

Test

Condition

 Note
Supply Voltage Vf 3.0 3.2 3.4 V If=40 mA -
Supply Current If - 40 - mA - -
Reverse Voltage Vr - - 5 V -
Power dissipation Pd - 288 - mW -
Luminous Intensity for LCM



-

 - 250 - Cd/m2 If=40mA -
Uniformity for LCM - 80 - - ％ If=40 mA -
Backlight Color White


Optical Characteristics



No. ITEM Symbol Conditions Specification Unit Note
Min Typ Max
1 Response Time Tr+Tf 25℃ - 6 - Ms (1)(2)
2 Transmittance (With PL) T(%) - - 7.1 - - -
3 Contrast Rate Cr

θ=0,

Normal viewing angle

 - 500 - - (1)(3)
4

Viewing

Angle



 Hor. θR CR>10 - 60 - Deg -
θL - 60 -
Ver. Θ+ - 60 -
Θ- - 45 -

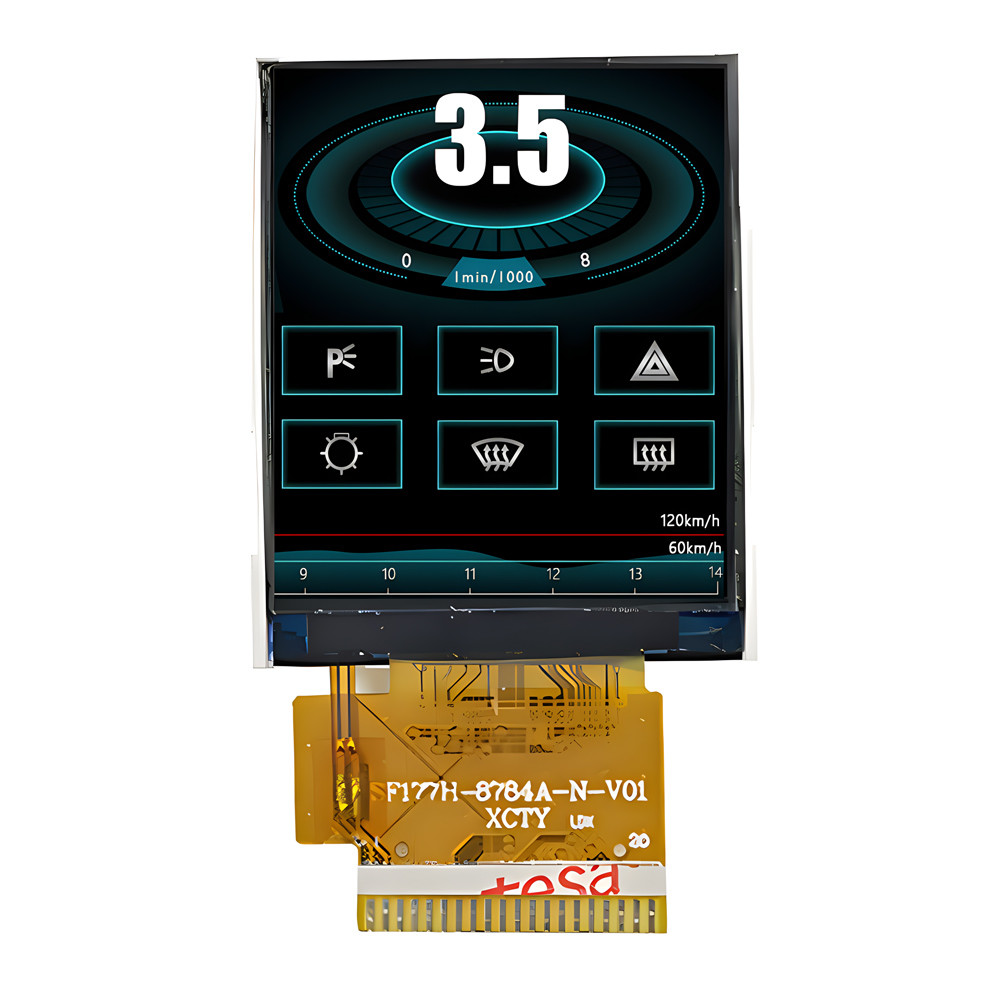

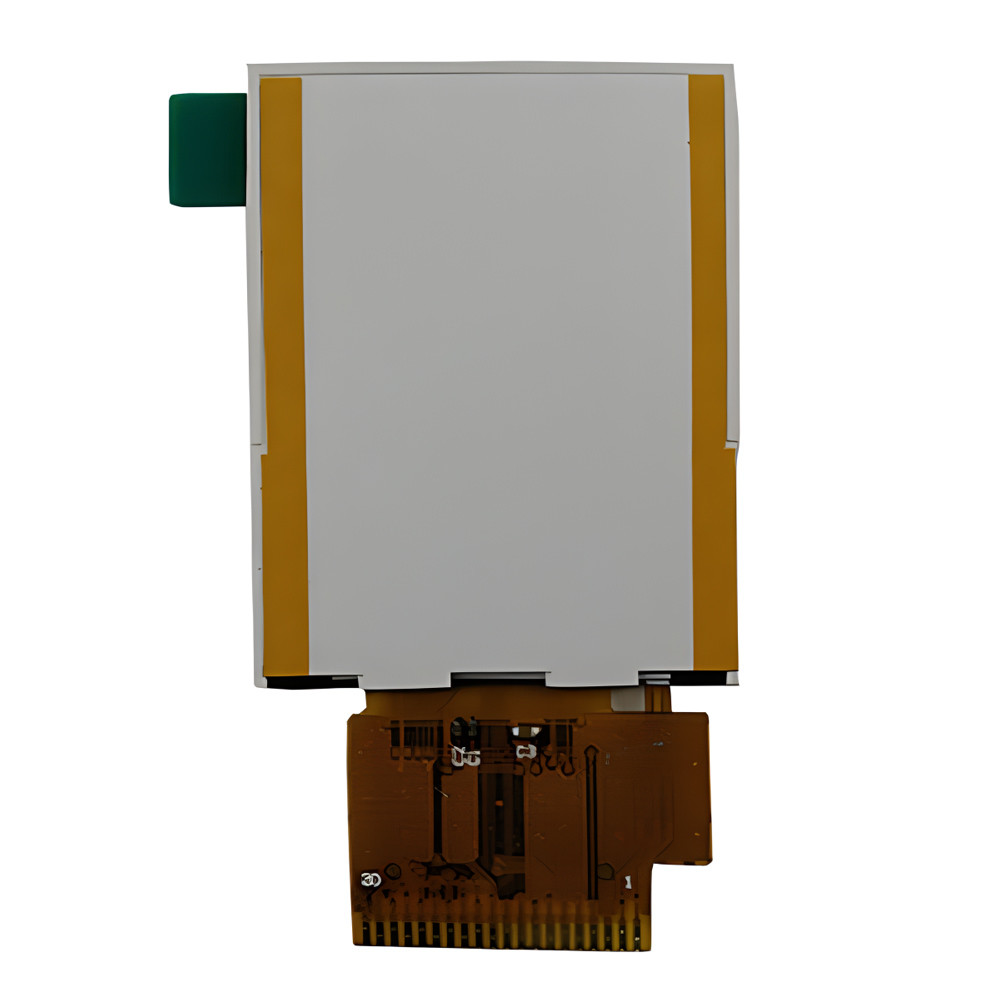

1.77 inch TFT LCD display 8-bit MPU Interface Product Image

1.77 Inch TFT Display Manufacturer China 128x160 Dots MPU Interface1.77 Inch TFT Display Manufacturer China 128x160 Dots MPU Interface



Factory Facilities and Certificates



1.77 Inch TFT Display Manufacturer China 128x160 Dots MPU Interface

1.77 Inch TFT Display Manufacturer China 128x160 Dots MPU Interface
