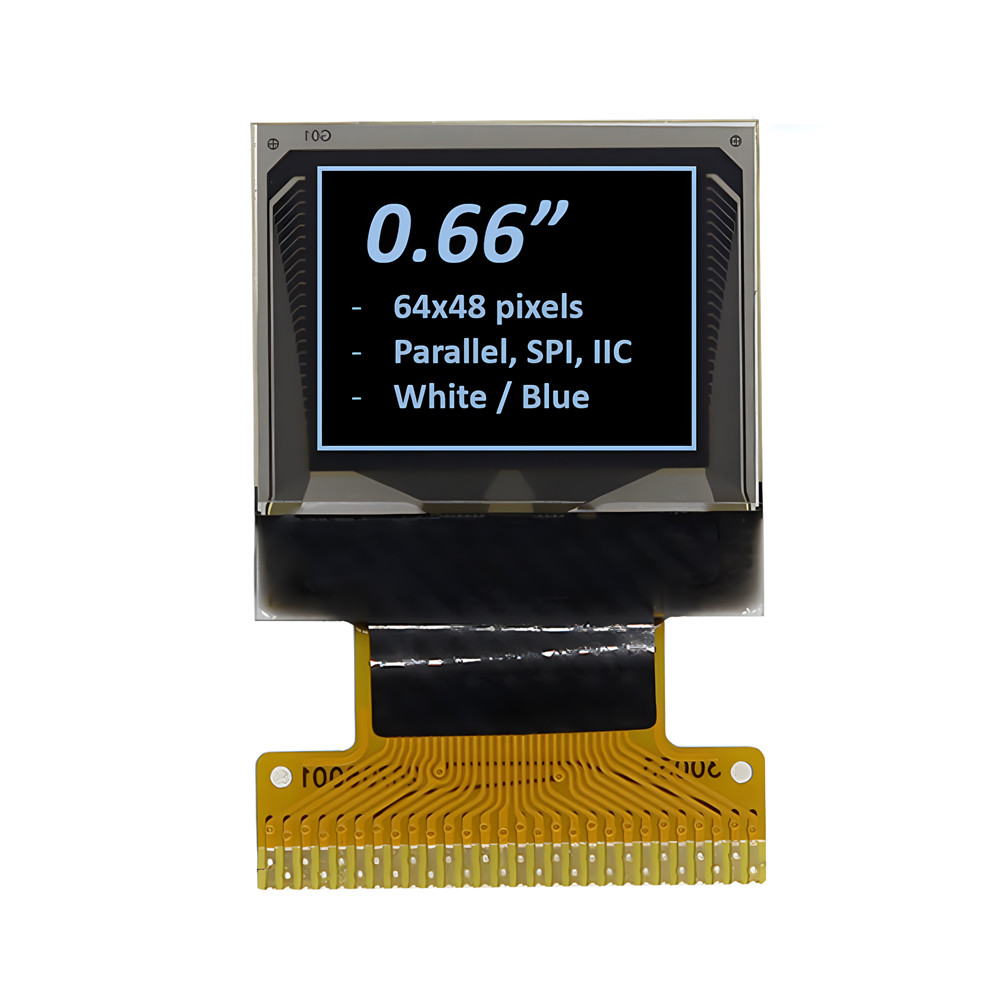

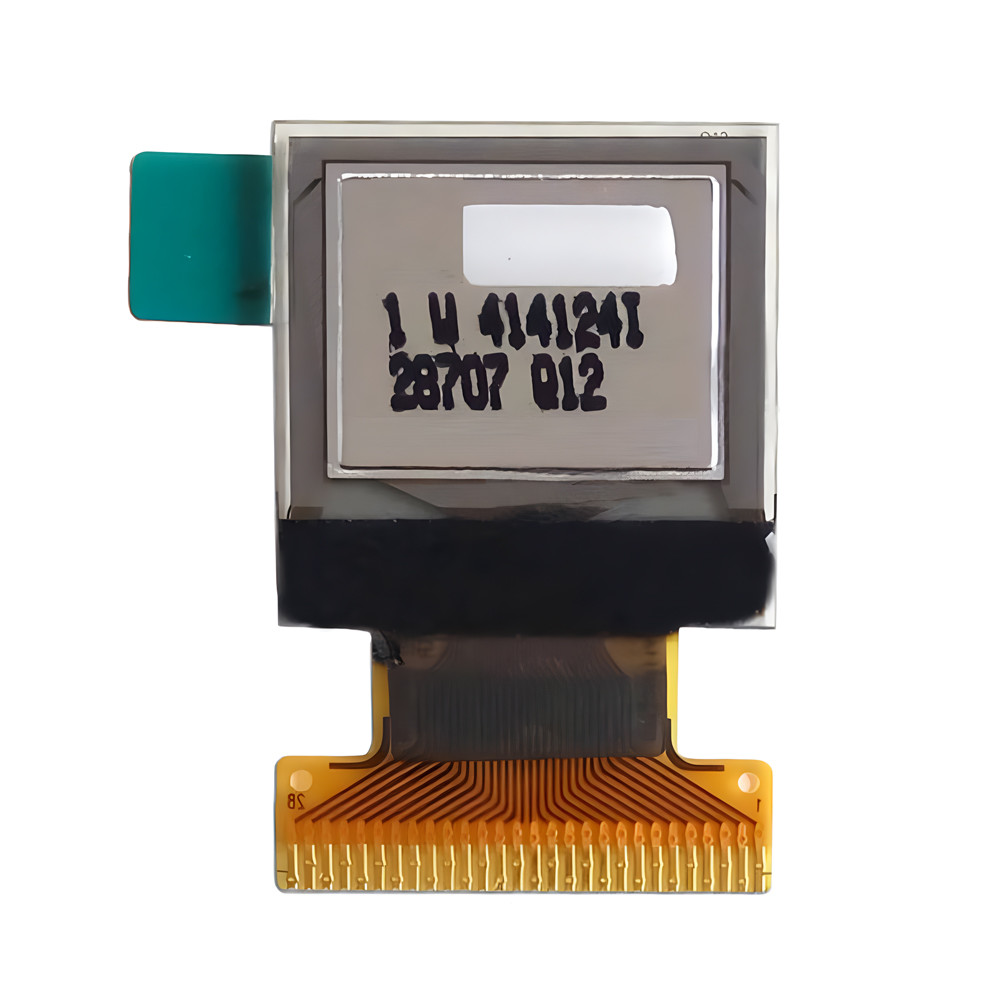

0.66 Inch Graphic OLED Display Module 64x48 Pixels White/Blue Optional

Product Categories
Shenzhen Saef Technology Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

0.66 Inch Graphic OLED Display Module 64x48 Pixels White/Blue Optional

  • 1
  • 2
  • 3

Brand Name : SAEF

Model Number : SFOS066XZ-7115AN

Certification : ISO9001 / ISO14000

Place of Origin : ShenZhen / China

MOQ : 3 pcs

Price : Negotiable

Payment Terms : L/C, T/T, Western Union, Paypal

Supply Ability : 3000K pcs per month

Delivery Time : 1-5 weeks

Packaging Details : Standard Exportation Package

Product : 0.66 inch OLED display Module

Number of Pixels : 64x48 Graphics

Driver IC : SSD1315 or Equivalent

Display Mode : Passive Matrix

Display Color : Monochrome (white)

Drive Duty : 1/48 Duty

Panel Size : 16.42 x 16.9 x 1.25 (mm)

Active Area : 13.42 x 10.06 (mm)

Pixel Pitch : 0.21 x 0.21(mm)

Pixel Size : 0.19 x 0.19(mm)

Viewing Direction : All Viewing Angles

Interface : Parallel, SPI, I2C

Connection : Soldering/Hotbar

Pin number : 28 pins

Life time : 50,000 hours @60cd/m2

Compliance : REACH & RoHS Compliant

Contact Now



About this item SFOS066XZ-7115AN OLED Display Module



The SFOS066XZ-7115AN OLED Display Module is a compact and high-resolution display solution designed for various applications, particularly those requiring a small form factor and industrial-grade reliability. Here's a summary of its key features and specifications:

  1. Display Specifications:

    • Size: 0.66-inch diagonal, making it one of the smaller OLED displays suitable for compact devices.
    • Resolution: 64x48 pixels, providing a clear display for text and simple graphics.

  2. Industrial Grade:

    • Designed to meet industrial standards, ensuring durability and reliability in harsh environments.

  3. Controller IC:

    • Built-in SSD1315 IC, which is a common driver for OLED displays, known for its versatility and compatibility with various display types.

  4. Interfaces:

    • Supports 8-bit 68XX/80XX Parallel interface, providing a direct connection method for data transfer.
    • 4-wire SPI interface for serial communication, which is useful for microcontrollers with limited I/O pins.
    • I2C interface, a two-wire serial protocol that simplifies connections in applications with multiple I2C devices.

  5. Voltage and Current:

    • Logic Supply Voltage: 4V, which is typical for many microcontroller-based systems.
    • Operating Current for VDD: 180μA, indicating low power consumption, beneficial for battery-operated devices.

  6. Driving Duty:

    • 1/48 duty cycle, which means the display is updated 1/48th of the time, a common practice for OLED displays to manage power consumption.

  7. Temperature Range:

    • Operates from -40℃ to +80℃, making it suitable for a wide range of environments, from cold storage to hot industrial settings.
    • Storage temperatures range from -40℃ to +80℃, ensuring the module remains stable during transportation and when not in use.

  8. Applications:

    • Ideal for wearable devices, such as smartwatches and fitness trackers, where a small, high-resolution display is  required.
    • Suitable for smart home applications, such as smart thermostats and home automation panels, where a clear display  is  needed for user interaction.

  9. Price:

    • Positioned as a competitively priced option, making it an attractive choice for cost-sensitive projects while maintaining industrial-grade quality.

  10. Additional Considerations:

    • The module's small size and low power consumption make it suitable for battery-powered devices, extending battery life.
    • The wide operating temperature range allows for use in outdoor applications or in regions with extreme temperature fluctuations.

The SFOS066XZ-7115AN OLED Display Module is a versatile display solution for applications where a combination of small size, high resolution, and industrial-grade reliability is required. Its low power consumption and support for multiple communication interfaces make it a popular choice for designers and engineers working on next-generation devices.





Features



Product: 0.66 Inch OLED Display Module
Number Of Pixels: 64x48 Graphics
Driver IC: SSD1315 Or Equivalent
Interface: Parallel, SPI, I2C
Display Mode: Passive Matrix
Drive Duty: 1/48 Duty
Display Color: Monochrome (white)
Panel Size: 16.42 X 16.9 X 1.25 (mm)
Active Area: 13.42 X 10.06 (mm)
Pixel Pitch: 0.21 X 0.21(mm)
Pixel Size: 0.19 X 0.19(mm)
Viewing Direction: All Viewing Angles
Pin Number: 28 Pins
Connection: Soldering/Hotbar (Plug-in Customizable)
Life Time: 50,000 Hours @60cd/m2
Compliance: REACH & RoHS Compliant

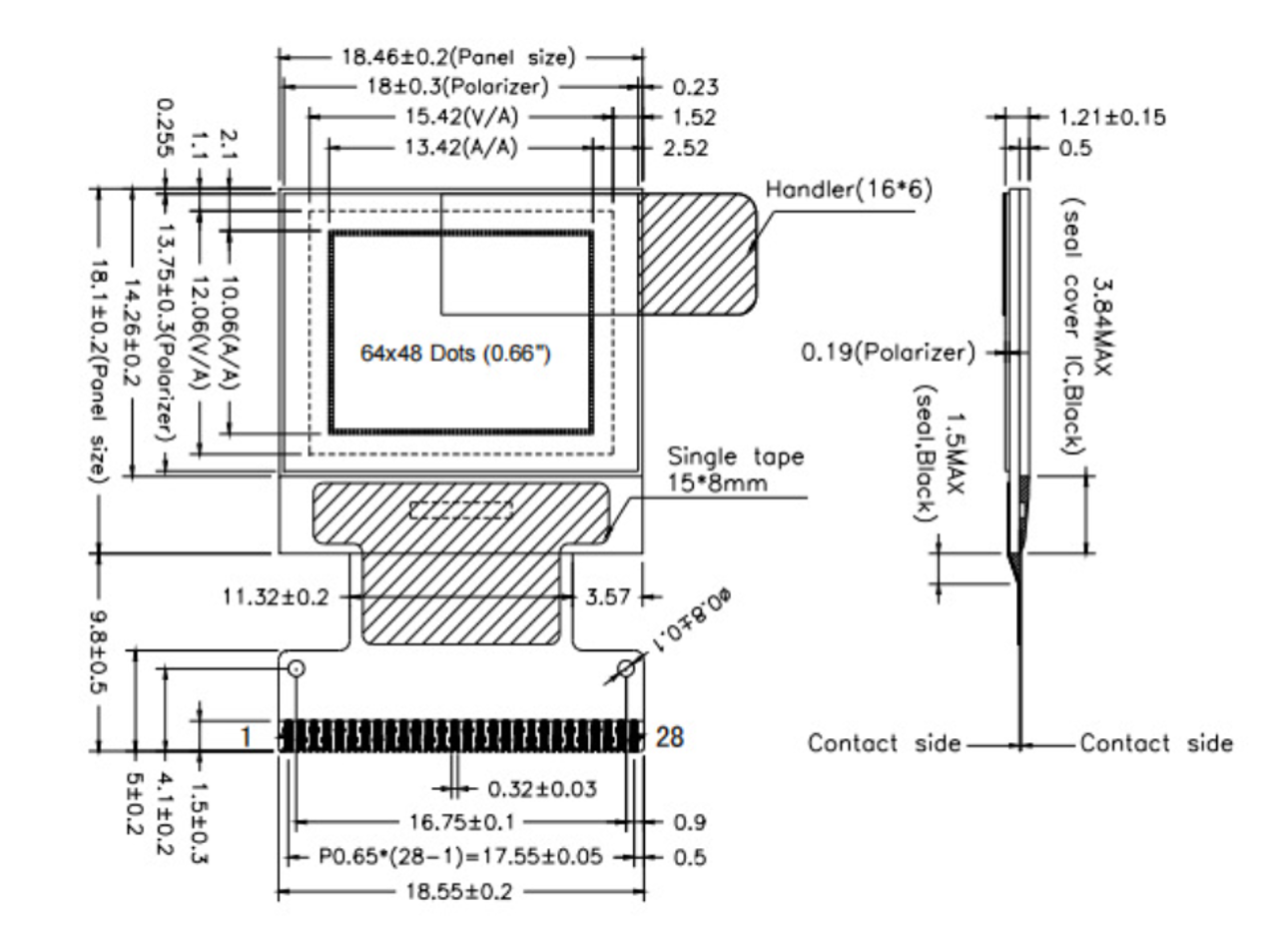

Outline Drawing



0.66 Inch Graphic OLED Display Module 64x48 Pixels White/Blue Optional



Pin Definition





Pin No. Symbol I/O Function
1

N.C. (GND)

 - Reserved Pin (Supporting Pin)
2-5

C1P / C1N C2P / C2N

 I

Positive Terminal of the Flying Inverting Capacitor Negative Terminal of the Flying Boost Capacitor
6

VBAT

 P

Power Supply for DC/DC Converter Circuit
7

VSS

 P

Ground of Logic Circuit
8 VDD P Power supply for logic
9 - 10

BS1 BS2

 I

Communicating Protocol Select
11

CS#

 I

Chip Select
12

RES#

 I

Power Reset for Controller and Driver
13

D/C#

 I

Data/Command Control
14 R/W# I Read/Write Select or Write
15

E/RD#

 I

Read/Write Enable or Read
16-23 D0~D7 I/O Host Data Input/Output Bus
24

IREF

 I

Current Reference for Brightness Adjustment
25

VCOMH

 O

Voltage Output High Level for COM Signal
26

VCC

 P

Power Supply for OEL Panel
27 VLSS. - Ground of Logic Circuit
28 N.C. (GND) - Reserved Pin (Supporting Pin)





Optics Characteristics



Characteristics Symbol Conditions Min Typ Max Unit

Brightness

(VCC Supplied Externally)

Lbr



Lbr
(x) (y)
CR



 Note 5 80 - - cd/m2

Brightness

(VCC Generated by Internal DC/DC)

 Note 6 80 100 - cd/m2
C.I.E. (White) C.I.E. 1931 0.25 0.27 0.29 0.31 0.33 0.35
Dark Room Contrast   - 2000:1 -
Viewing Angle   - Free - degree





DC Characteristics



Characteristics Symbol Conditions Min Typ Max Unit
Supply Voltage for Logic VDD   1.65 2.8

3.5

8.0

 V

Supply Voltage for Display (Supplied Externally)

Supply Voltage for DC/DC

 VCC



 7.0 7.5 V
VBAT 3.5 -

4.2



-

 V

Supply Voltage for Display (Generatedby Internal DC/DC)

High Level Input

 VCC



 7.0 7.5 V
VIH 0.8×VDD -

VDD

0.2×VDD

VDD

0.1×VDD



300



9



19

 V
Low Level Input VIL IOUT = 100μA, 3.3MHz 0 - V
High Level Output VOH IOUT = 100μA, 3.3MHz 0.9×VDD - V
Low Level Output VOL IOUT = 100μA, 3.3MHz 0 - V
Operating Current for VDD IDD   - 180 μA

Operating Current for VCC (VCC Supplied Externally)

ICC

-

-



5



mA
Operating Currentfor VBAT (VCC Generated by Internal DC/DC) IBAT





-



14



mA
Sleep Mode Current for VDD IDD, SLEEP   - 1

10



10

 μA
Sleep Mode Current for VCC ICC, SLEEP   - 2 μA





Product Image
