Sunlight Readable 7.6 Inch TFT LCD 1000Nits 800x800 Pixels IPS Screen Product Introduction
Product Quick Review
►Square LCD Display
►Size: 7.6 inch
►Resolution : 800x800 dots
►View Direction : IPS
►Interface : MIPI
►Driver IC : ILI9881C
►Control-Board : No
►Brightness(cd/m²) : 1000
►Frame Through Hole : No
►Touch Screen : Projected Capacitive Touch Panel (PCAP) optional
►Detect Point : 5 Fingers
►Operating Temperature : -20~+70°C (Wide Temperature)
Description
Saef Technology SFTO760GX-7109A-N a TFT LCD module with a diagonal size of 7.6 inches square and a resolution of 800x800pixels. This 7.6-inch LCD display module is equipped with an ILI9881C integrated circuit, which includes controller and driver IC functions, and supports MIPI interface. The power supply voltage (Vdd) range of this 7.6-inch LCD monitor ranges from 2.5V to 3.6V (typical value of 3.3V). The viewing direction of this 7.6-inch module is IPS type, with a full view angle (85/85/85/85 max).
The SFTO760GX-7109A-N display module is displayed with a brightness of 1000 nits. This 7.6-inch IPS TFT LCD can operate at temperatures ranging from -20 ℃ to+70 ℃; Its storage temperature is between -25 ℃ and+75 ℃. Whether used indoors or outdoors, this 7.6-inch IPS TFT LCD display can meet various display requirements. It is a multifunctional and high-performance solution suitable for industrial equipment, scanners, home automation, access control systems, monitoring equipment, analyzers, security systems, garden irrigation systems, and a wide range of applications.
Product Information
| Product: |
7.6 Inch Square LCD Display |
| Resolution: |
800*800 Dots |
| Surface Luminance: |
1000 Cd/m2(nits) |
| Interface: |
MIPI |
| Touch Screen: |
Customizable |
| Cover Glass Dimension: |
Customizable |
| Viewing Direction: |
IPS, All Viewing Angle (85/85/85/85) |
| LCD Controller: |
ILI9881C |
| Operating Temp: |
-20°C To +70°C |
| Storage Temp.: |
-25°C To +75°C |
| Brightness: |
1000 Nits |
| LED Lifetime: |
40,000 Hours |
| Connection: |
ZIF FPC |
| Compliance: |
REACH & RoHS Compliant |
Sunlight Readable 7.6 Inch TFT LCD 1000 Nits 800x800 Pixels IPS Screen Product Drawing
Pin Definition
| Pin No. |
Symbol |
Description |
| 1 |
LEDA |
LED backlight anode |
| 2 |
LEDK |
LED backlight cathode. |
| 3 |
LEDK |
LED backlight cathode |
| 4 |
VCl |
Power supply for the analog power |
| 5 |
IOVCC |
Power supply for the logic power and I/O circuit |
| 6 |
RESET |
Reset signal(low active |
| 7 |
TE |
Tearing effect output |
| 8 |
PWM |
The PWM frequency output for LCD driver control. |
| 9 |
GND |
Power ground |
| 10 |
MIPI_DP0 |
MIPI-DSI data lane 0 posivtve input pin |
| 11 |
MIPI_DNO |
MIPI-DSI data lane 0 negtive input pin |
| 12 |
GND |
Power ground |
| 13 |
MIPI_DP1 |
MIPI-DSI data lane 1 posivtve input pin |
| 14 |
MIPI_DN1 |
MIPI-DSI data lane 1 negtive input pin |
| 15 |
GND |
Power ground |
| 16 |
MIPI_CLKP |
MIPl-DSI data lane posivtve input pin. |
| 17 |
MIPI_CLKN |
MIPI-DSI data lane negtive input pin |
| 18 |
GND |
Power ground |
| 19 |
MIPI_DP2 |
MIPI-DSI data lane 2 posivtve input pin |
| 20 |
MIPI_DN2 |
MIPI-DSI data lane 2 negtive input pin |
| 21 |
GND |
Power grounc |
| 22 |
MIPI_DP3 |
MIPI-DSI data lane 3 posivtve input pin |
| 23 |
MIPI_DN3 |
MIPI-DSI data lane 3 negtive input pin |
| 24 |
GND |
Power ground |
| 25 |
TP_INT |
INT pin for CTP(NC) |
| 26 |
TP SDA |
SDA pin for CTP(NC) |
| 27 |
TP_SCL |
SCL pin for CTP(NC) |
| 28 |
TP_RESET |
Reset pin for TP(NC) |
| 29 |
TP_VCl |
VCl pin for CTP(NC) |
| 30 |
TP_IOVCC |
IOVCCpin for CTP(NC)
|
Maximum Absolute Rating
| Parameter |
Symbo |
Min |
Max |
Unit |
Note |
| Power Supply voltage |
VCI~GND |
-0.3 |
+6.5 |
V |
|
| Power Supply voltage 2 |
IOVCC~GND |
-0.3 |
+3.3 |
V |
|
| Logic Input Voltage Range |
ViN |
-0.3 |
IOVCC+0.3 |
V |
|
| Logic Output Voltage Range |
Vo |
-0.3 |
IOVCC+0.3 |
V |
|
| Operating temperature |
Topr |
-20 |
+70 |
℃ |
|
| Storage temperature |
Tstg |
-25 |
+75 |
℃ |
|
DC Characteristics
| Parameter |
Symbol |
Min |
Typ |
Max |
Unit |
| Supply voltage for analog circuit |
VCl |
2.5 |
3.3 |
3.6 |
V |
| Supply voltage for logic circuit |
IOVCC |
1.65 |
1.8 |
3.3 |
V |
| Input voltage 'H'leve |
VH |
0.7*IOVCC |
|
IOVCC |
V |
| Input voltage 'L'leve |
VL |
GND |
|
0.3*IOVCC |
V |
| Output voltage 'H'level |
Voh |
0.8*IOVCCl |
|
IOVCC |
V |
| Output voltage 'L'leve |
Vol |
GND |
|
0.2*IOVCC |
V |
Backlight Characteristics
| Item |
Symbol |
Min |
Typ |
Max |
Unit |
Condition |
| Forward voltage |
Vf |
13.5 |
15.0 |
17 |
V |
If=225
mA
|
| ICM Luminance |
LV |
|
1000 |
—— |
cd/m |
| Number of LED |
|
5X5 |
Piece |
|
| Connection mode |
S/P |
5Serial/5Parallel |
|
|

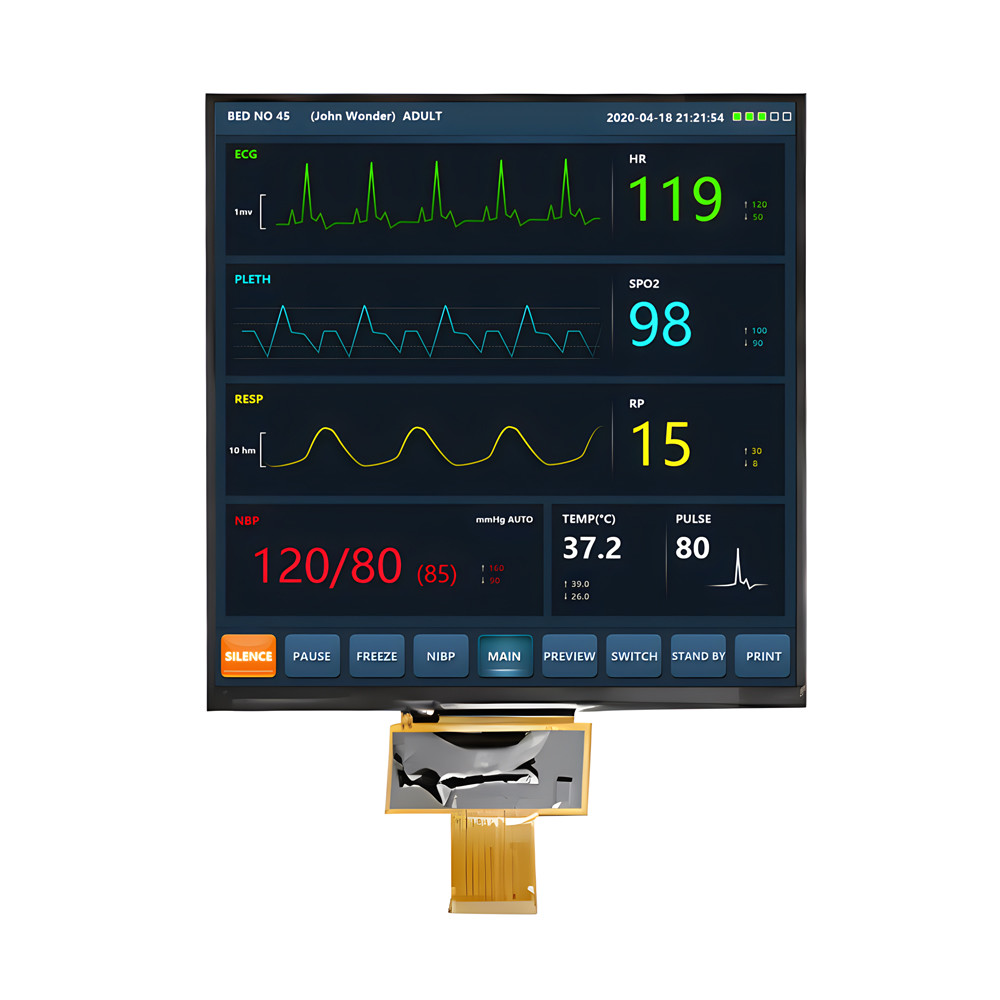

Sunlight Readable 7.6 Inch TFT LCD 1000 Nits 800x800 Pixels IPS Screen Product Image
Projected Capacitive (PCAP) Touch Screen
Projected capacitive (PCAP) touch technology provides fast and responsive response and professional-grade reliability. Saef Technology's projected capacitive touchscreens are designed for rigorous industrial, medical, and automotive applications. We can also combine PCAP touchscreens with liquid crystal displays (LCDs), an integrated embedded solution that helps streamline supply chains and assembly.
Cover Glass:
1. Shape: Custom sizes, shapes, edge treatments, holes and cut-outs
2. Color: Silk printing, Logo
3. Glass material: Gorilla Glass, Tempered Glass, PMMA
4. Treatments: Mirror, AG, AR, AF
Sensor:
1. Sensor Material: Glass, Film, Film+Film
2. FPC: Shape design optional
3. IC: EETI, ILITEK, SIS, Cypress, Focaltech, Goodix and so on
4. Interface: I2C, USB, RS232
