About this item 0.85 inch IPS TFT LCD Display SFTO085JY-7247AN
Main features:
Size and Resolution: This monitor has a screen size of 0.85 inches and a resolution of 128x128 pixels, providing clear image display.
Display technology: Adopting IPS (In Plane Switching) technology, it provides a wide viewing angle and excellent color reproduction, allowing you to easily observe from various angles without distortion.
High contrast: With a high contrast ratio of 1200:1, it can present deep black and vivid colors.
High brightness: With a brightness of 260cd/m ², it can maintain clear visibility even in bright environments.
Interface type: Supports 4-wire serial SPI interface, connected through pin headers, which improves communication efficiency with devices such as Arduino/C8051.
Driver IC: GC9107 display driver IC is used to ensure stable display performance.
Connector: Equipped with a 12 pin ZIF (Zero Insertion Force) connector for easy connection and reduced insertion force, protecting the connection terminals.
Working temperature: Supports a working temperature range of -20 ℃ to 70 ℃, suitable for various environmental conditions.
Storage temperature: Supports a storage temperature range of -30 ℃ to 80 ℃, ensuring performance stability under extreme temperatures.
Color display: Supports 4K/65K/262K colors to meet various color display needs.
Visual Range: Provides 80 degree left, right, up, and down viewing angles to ensure a good visual experience from different angles.
Application scenarios:
This 0.85-inch IPS TFT LCD display is suitable for various application fields, including but not limited to smart wearable devices, industrial control panels, medical equipment displays, and other occasions that require small-sized high-resolution displays, due to its small size, high resolution, and excellent display performance.
General Specifications
| NO. | Item | Contents | Unit |
| 1 | LCD Size | 0.85inch(Diagonal) | - |
| 2 | Display Mode | Normally black | - |
| 3 | Resolution | 128(H)RGB x 128(V) | - |
| 4 | Dot pitch | 0.1188 (H) x 0.1188(V) mm | - |
| 5 | Active area | 15.2064(H) x 15.2064 (V) mm | - |
| 6 | Module size | 17.58(H) x 20.82(V) x1.5(D) mm | - |
| 7 | Color arrangement | RGB Vtertical stripe | - |
| 8 | Interface | SPI4 LINE | - |
| 9 | Drive IC | GC9107 | - |
| 10 | Luminance(cd/m2) | 260 (TYP) | |
| 11 | Viewing Direction | All View | |
| 12 | Backlight | 1 White LED | |
| 13 | Operating Temp. | -20℃~ + 70℃ | ℃ |
| 14 | Storage Temp. | -30℃~+ 80℃ | ℃ |
| 15 | Weight | TBD | g |

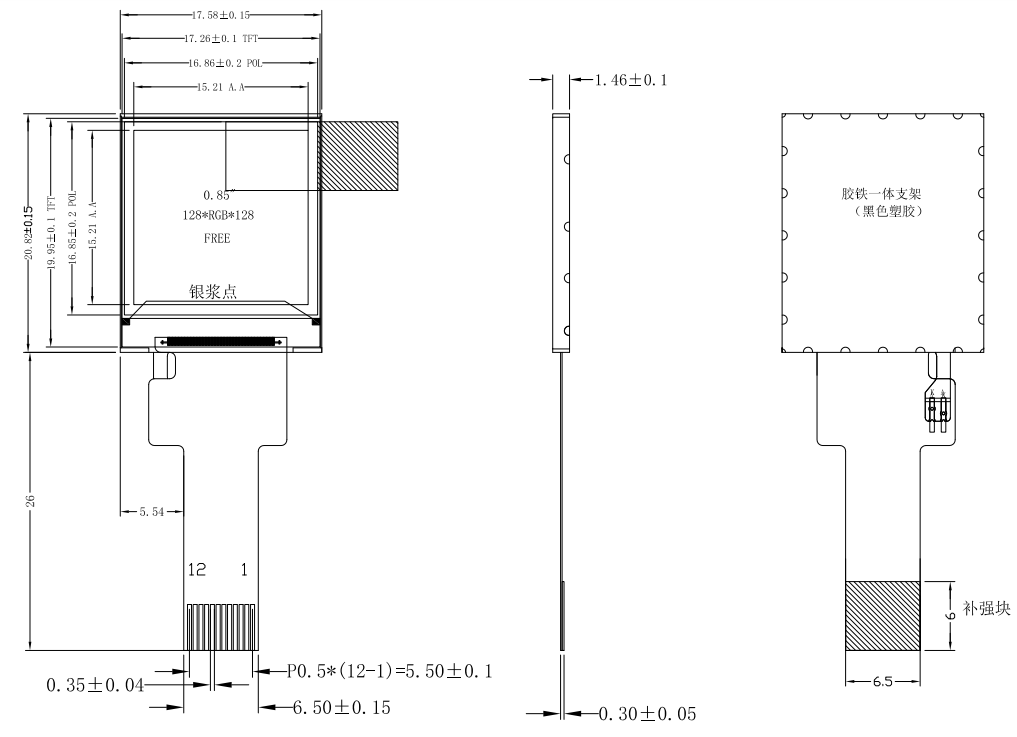

External Dimensions
Interface Pin Definition
| Pin No. | Symbol | Description |
| 1 | GND | Ground |
| 2 | LEDK | Cathode of Backlight |
| 3 | LEDA | Anode of Backlight |
| 4 | VDD | Power supply for Analog(2.8V-3.3V) |
| 5 | GND | Ground |
| 6 | GND | Ground |
| 7 | D/C | Register select pin D/C=’ 1’ : Display data. D/C=’0’ : Command data. |
| 8 | CS | Chip select pin(“Low” enable) |
| 9 | SCL | Serial clock pin. |
| 10 | SDA | Serial data input |
| 11 | RESET | LCM Reset pin |
| 12 | GND | Ground |
Absolute Maximum Ratings
| Parameter | Symbol | Min | Max | Unit |
| Logic Supply Voltage | IOVCC | -0.3 | 4.6 | V |
| Analog Supply Voltage | VCC | -0.3 | 4.6 | V |
| Operating temperature | Top | -20 | 70 | ℃ |
| Storage temperature | Tst | -30 | 80 | ℃ |
| Humidity | RH | -- | 90%(Max60C) | RH |
Electrical Specification
| Parameter | Symbol | Min | Typ | Max | Unit |
| Logic Supply Voltage | IOVCC | 1.65 | 1.8/2.8 | 3.3 | V |
| Analog Supply Voltage | VCC | 2.6 | 2.8 | 3.3 | -- |
| Input Current | Idd | -- | 20 | -- | mA |
Backlight Characteristics
| Item | Symbol | Min | Typ | Max | Unit |
| Forward Voltage | Vf | 3.0 | 3.2 | 3.4 | V |
| Forward Current | If | -- | 20 | -- | mA |
| Operating Life Time | -- | 30000 | 40000 | -- | Hrs |

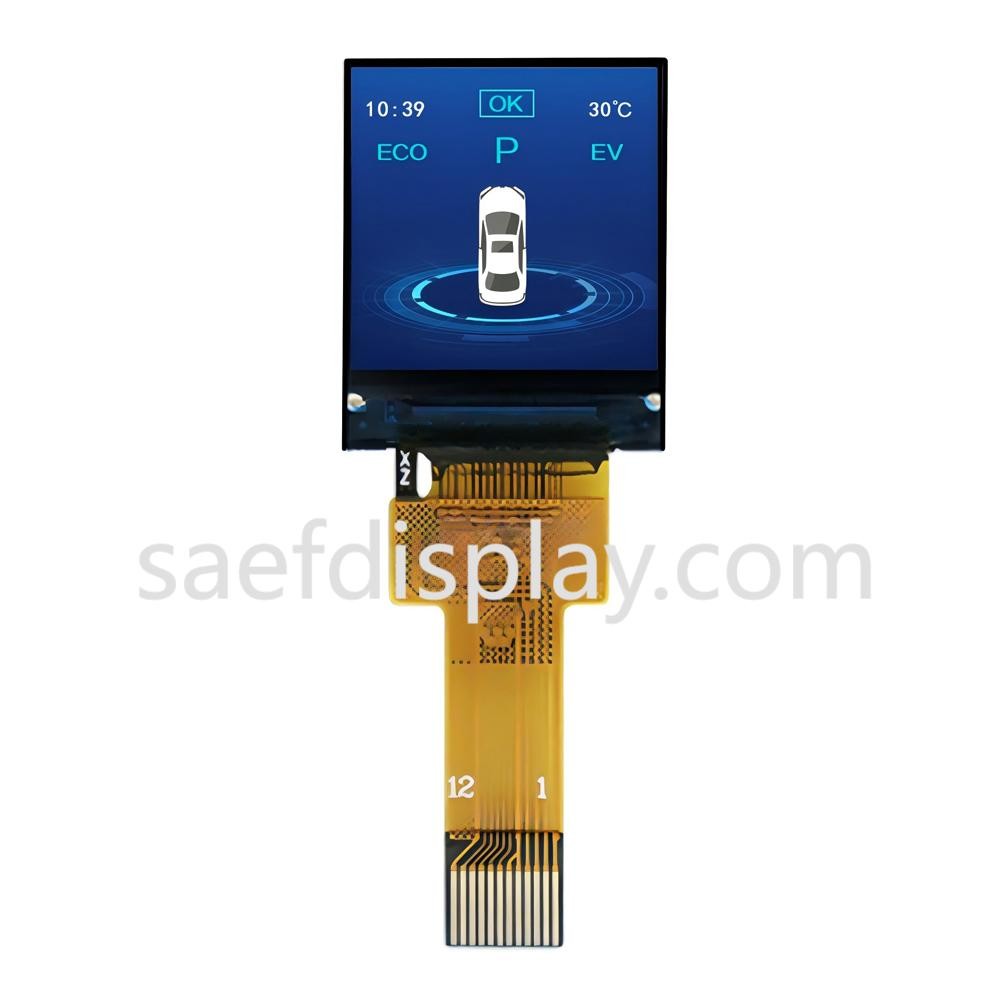

Product Image
