OCA Capacitive PCAP 13.3-Inch TFT LCD Module HD 1920x1080 Dot EDP 30 Pin Interface

Name: OCA Capacitive PCAP 133Inch TFT LCD Module HD 1920x1080 Dot EDP 30 Pin Interface
Brand: SAEF
Price: 1 USD

Buy cheap OCA Capacitive PCAP 13.3-Inch TFT LCD Module HD 1920x1080 Dot EDP 30 Pin Interface product

Brand Name : SAEF

Model Number : SFTO1330XC-7119A-CT

Certification : ISO9001 / ISO14000

Place of Origin : ShenZhen / China

MOQ : 3 pcs

Price : Negotiable.

Payment Terms : L/C, T/T, Western Union, Paypal

Supply Ability : 3000K pcs per month

Delivery Time : 1-5 weeks

Packaging Details : Standard Exportation Package

Keywords : 13.3 inch PCAP TFT Module

Resolution : 1920*1080 pixels

LCD interface : EDP

Surface Luminance : 1000 cd/m2

Touch screen : CTP (Projective Capacitive Touch Screen)

CTP Interface : USB

Active Area : 293.76 x 165.24 (mm)

Operating Temp. : -10℃ to +60℃

Storage Temp. : -20℃ to +60℃

Display type : IPS full viewing angles

Surface Treatment : Haze 25%, 3H

Contrast Ratio : 1000

Display Color : 16.7 M

LED lifetime : 30,000 hours

Certificate : ISO9001:2015 / ISO1400:2015

Compliance : REACH & RoHS Compliant

Contact Now

** Datasheet Download **

SFTO1330XC-7119A10CT Specification.pdf

13.3 inch eDP TFT with OCA PCAP Product Description

SFTO1330XC-7119A10CT is a 13.3-inch high resolution TFT LCD display module boasting a resolution of 1920x1080 pixels and PCAP touch functionality. This high resolution TFT LCD display module features a built-in TC2055G driver IC and supports eDP interface. With outline dimensions of 307.55 x 185.62 x 4.58 mm (with Touch) and an active area size of 293.76 x 165.24 mm, it utilizes IPS technology to deliver a wider viewing angle of 80 degrees in all directions (Left: 80 / Right: 80 / Up: 80 / Down: 80).

With a high contrast ratio of 1000:1 (typical value) and a brightness of 1000 nits (typical value), this model ensures vivid and clear visuals, enhancing the user experience. Additionally, the module adopts a projected capacitive touch panel (PCAP) with ILI2511 IC, which supports USB and I2C interfaces and 10-point touch, further elevating its usability and functionality.

Operating within a power voltage range of 3.0V to 3.6V (typical value: 3.3V), this module is designed to withstand various environmental conditions. Its operating temperature ranges from -10°C to +60°C, while the storage temperature extends from -20°C to +60°C, making it suitable for a wide range of applications. From industrial machinery and equipment to HMI (Human-Machine Interface) systems, POS (Point of Sale) terminals, and outdoor vending systems, this high resolution TFT LCD display module offers excellent performance and reliability.

Features

Characteristics	Size	13.3 inch
	Resolution	1920(horizontal)x1080(Vertical)
	Interface	eDP1.2/2.7Gbps/2lane
	Connect type	20455-030E-76 (I-PEX)
	Color Depth	16.7M
	Technology type	A-si
	Display Spec. Pixel pitch (mm)	0.153 x 0.153
	Pixel Configuration	R.G.B. Vertical Stripe
	Display Mode	Normally Black
	TP Driver IC	ILI2511
	LCD Surface Treatment	Anti-glare coating:(3H)
	Viewing Direction	U/D/L/R:85/85/85/85
	Contrast Ratio	250(TYP.)
	Color gamut	72%
	Luminance(cd/m2)	1000(TYP.)
	Consumption of Power	LCD:1.8(W)(Max.)(White Pattern) BL:see details below
	LED Numbers	50 LEDS
	Weight (g)	-
Mechanical	Outline (W x H x D) (mm)	307.55 x 185.62 x 7.25 mm
	TP Lens view area(mm)	-
	LCM (W x H x D) (mm)	305.19 x 177.69 x 2.58 mm
	LCD Active Area(mm)	293.76 x 165.24
	With /Without TSP	With TSP

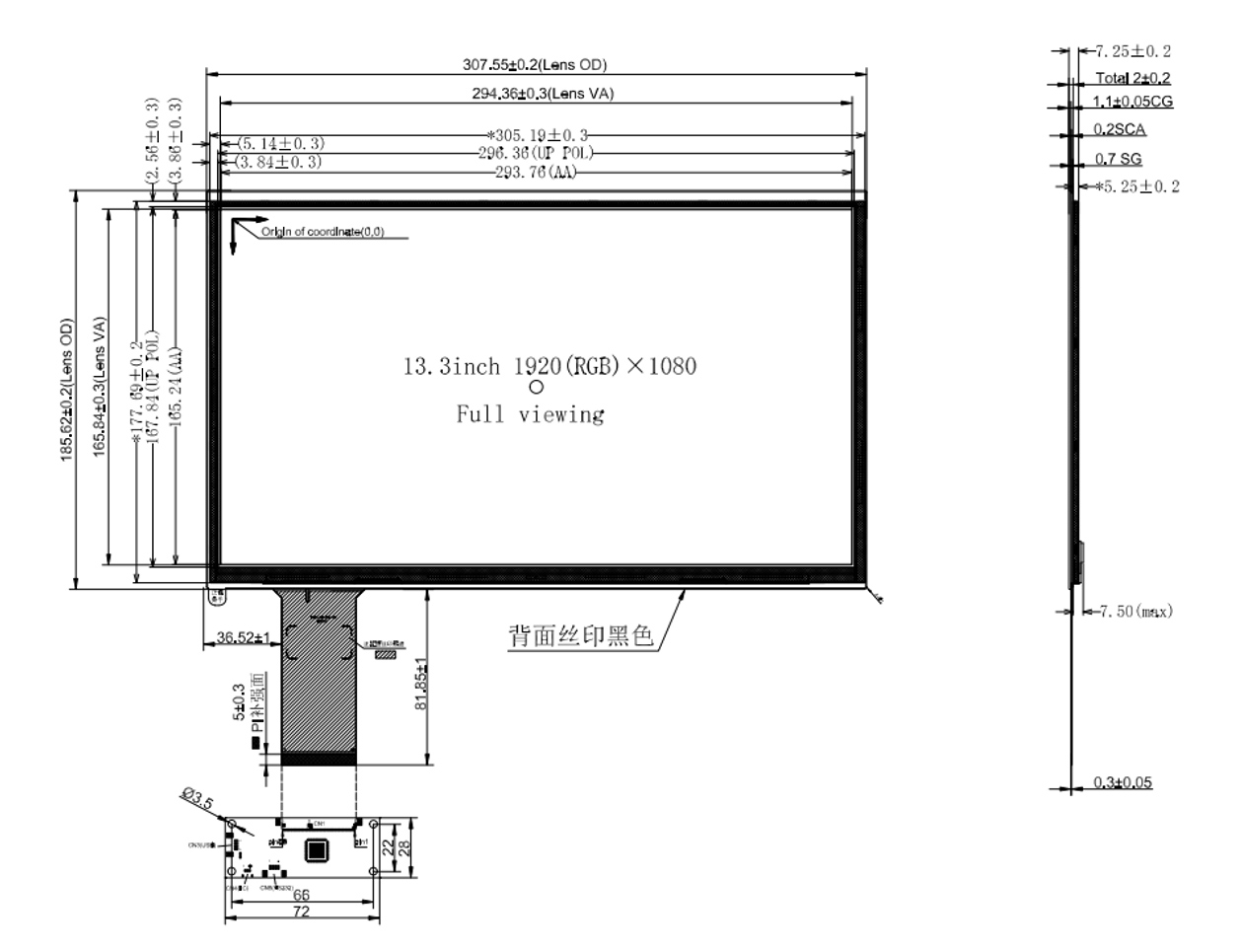

13.3 inch eDP TFT with OCA PCAP Product Drawing
OCA Capacitive PCAP 13.3-Inch TFT LCD Module HD 1920x1080 Dot EDP 30 Pin Interface

OCA Capacitive PCAP 13.3-Inch TFT LCD Module HD 1920x1080 Dot EDP 30 Pin Interface

Display Pin Definition

Terminal	Symbol	Functions
1	NC	No connection
2	H-GND	Ground
3	LAN1 N	Complement Signal Link _Lane1
4	LAN1 P	True Signal Link _Lane1
5	H-GND	Ground
6	LAN0_N	Complement Signal Link _Lane0
7	LAN0_P	True Signal Link _Lane0
8	H-GND
9	AUXP	True Signal Link _Auxiliry Channel
10	AUXN
11	H-GND	Ground
12	LCD_VCC	Power Supply, 3.3V (typ.)
13	LCD_VCC	Power Supply, 3.3V (typ.)
14	BIST	Panel self test enable
15	H_GND	Ground
16	H_GND	Ground
17	HPD	HPD(Hot Plug Detect) Signal Pin
18	BL_GND	High Speed Ground
19	BL_GND	High Speed Ground
20	BL_GND	High Speed Ground
21	BL_GND	High Speed Ground
22	BL EN	Backlight on/off Control pin
23	BL PWM	Back light PWM Dimming
24	NC	No connection
25	NC	No connection
26	BL PWR	Backlight power
27	BL PWR	Backlight power
28	BL PWR	Backlight power
29	BL PWR	Backlight power
30	NC	No connection

Electrical Specifications

Parameter		Min.	Typ.	Max.	Unit	Remarks
Surface Brightness		800	1000		cd/m2
Power Supply Voltage	VDD	3.0	3.3		V	Note 1
Permissible Input Ripple Voltage	VRF	-	-	100	mV	At VDD = 3.3V
Power Supply Current	IDD	-		-	mA	Note1
Differential Input Voltage	VID		-	1320	mV
Power Consumption			0.9		W	Note1
		-	4	-	W	Note2
		-	4.9	-	W

Optical Specifications

Items		Symbol	Condition	Specifications			Unit
Items		Symbol	Condition	Min.	Typ.	Max.	Unit
Contrast Ratio		CR	O=0deg	700	1000
Luminance of white		YLI			1000		cd/m²
Response Time		TR+TF			30	35	ms
Chromaticity	Red	XR			(0.642)
	Red	YR			(0.333)
	Green	Xg			(0.301)
	Green	Yg			(0.621)
	Blue	XB			(0.153)
	Blue	YB			(0.055)
	White	Xw			(0.313)
	White	Yw			(0.329)
Viewing angle	Hor.	①1(3 o'clock)	Center CR≥10	80	85		deg
	Hor.	①2(9 o'clock)		80	85
	Ver.	θ2(12 o'clock)		80	85
	Ver.	θ1(6 o'clock)		80	85
NTSC ratio		%		65	72		%

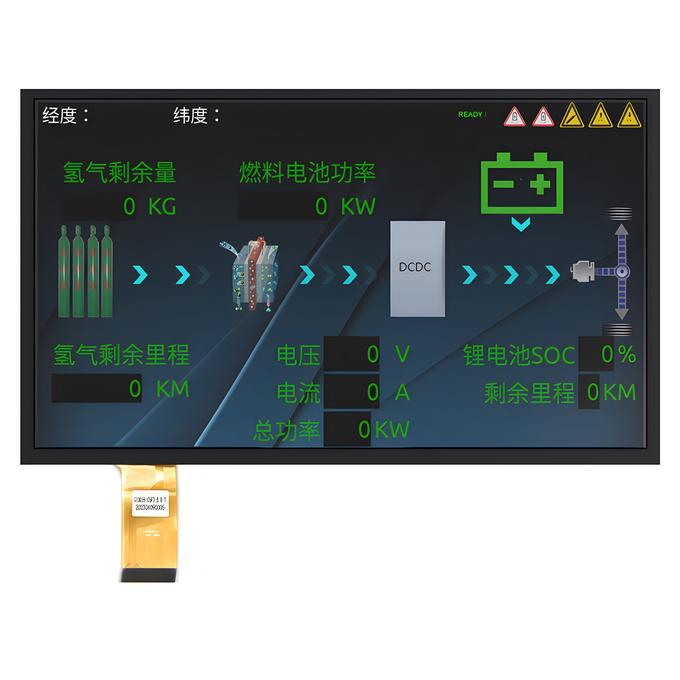

13.3 inch eDP TFT with OCA PCAP Product Image

RELIABILITY TEST

Test Item	Test Condition	Inspection after test
High Temperature Operation	60℃ for 96 hours	After the Testing is completed, the tested LCD samples must be placed in a normal indoor temperature and humidity environment for 2-4 hours or more before functional and visual inspection. The samples are not allowed to have the following defects: 1. Poor functionality, such as missing display, abnormal display, severe light explosion, etc. 2. There are no polarizing film bubbles, OCA bubbles, or other defects in the appearance. 2. Each tested module can only be used for one of the testing projects
Low Temperature Operation	0℃ for 96 hours
High Temperature Storage	60℃ for 96 hours
Low Temperature Storage	-10℃ for 96 hours
High Temperature Operation Humidity Operation	60℃, 90%RH for 72 hours
Thermal Shock	-10℃(30min) ~+25℃(5min)~ +60℃(30min) for 10 cycles
Vibration Test (No Operation)	Frequency: 10~55Hz Amplitude:1.0mm Sweep Time: 11min Test Period: 6 Cycles for each direction of X, Y, Z
Static electricity test	Touch ±4KV,air touch ±8KV
