5 Inch Muli-touch PCAP TFT Mipi Interface Product Introduction



TFT (Thin Film Transistor) is a liquid crystal display technology that has the characteristics of fast response speed and high color reproduction. The product SFTO500PY-7159A-CT adopts IPS technology, providing nearly 180 degree full view display capability, which can maintain color consistency and accuracy from any angle. On the capacitive touch screen, GT911 is a high-performance capacitive touch screen control chip that supports multi touch and provides users with a smooth interactive experience. Combining touch accuracy and response speed with the GT911 chip, the 5-inch TFT display IPS panoramic LCD screen can achieve high-precision touch operation and fast response. Saef Technology is an expert in IPS products, providing customers with over 500 IPS products applied to various industries.

The SFTO500PY-7159A-CT display screen has a high-definition resolution of 720 * 1280, ensuring the clarity of the image and the richness of details. The brightness reaches 350cd/m ², providing good visibility even in strong lighting environments. Saef Technology can achieve a brightness of 1000cd/m ² according to customer requirements.

This display screen SFTO500PY-7159A-CT is widely used in fields such as smartphones, tablets, car navigation systems, industrial control panels, etc. Its high resolution and multi touch functionality provide users with a rich interactive experience and convenient operation methods.





Features



Item Specification Unit
Screen Size 5.0  inch
Number of Pixel 720RGB(H)x1280(V) Pixels
Display area 62.10(H)x110.40(V) mm
Pixel pitch 0.0945(H)x0.0945(V) mm
Outline Dimension 78.56x135.65x2.95 mm
Pixel arrangement RGB Vertical Stripe
Display mode Normally Black
Viewing Direction(eye) ALL
Display Color 262K
Luminance(cd/m2) 350 nit
Contrast Ratio 800:1
Interface MIPI
Back-light LED Side-light type
LCM IC ST7703
CTP IC GT911
Operation Temperature -20~70
Storage Temperature -30~80

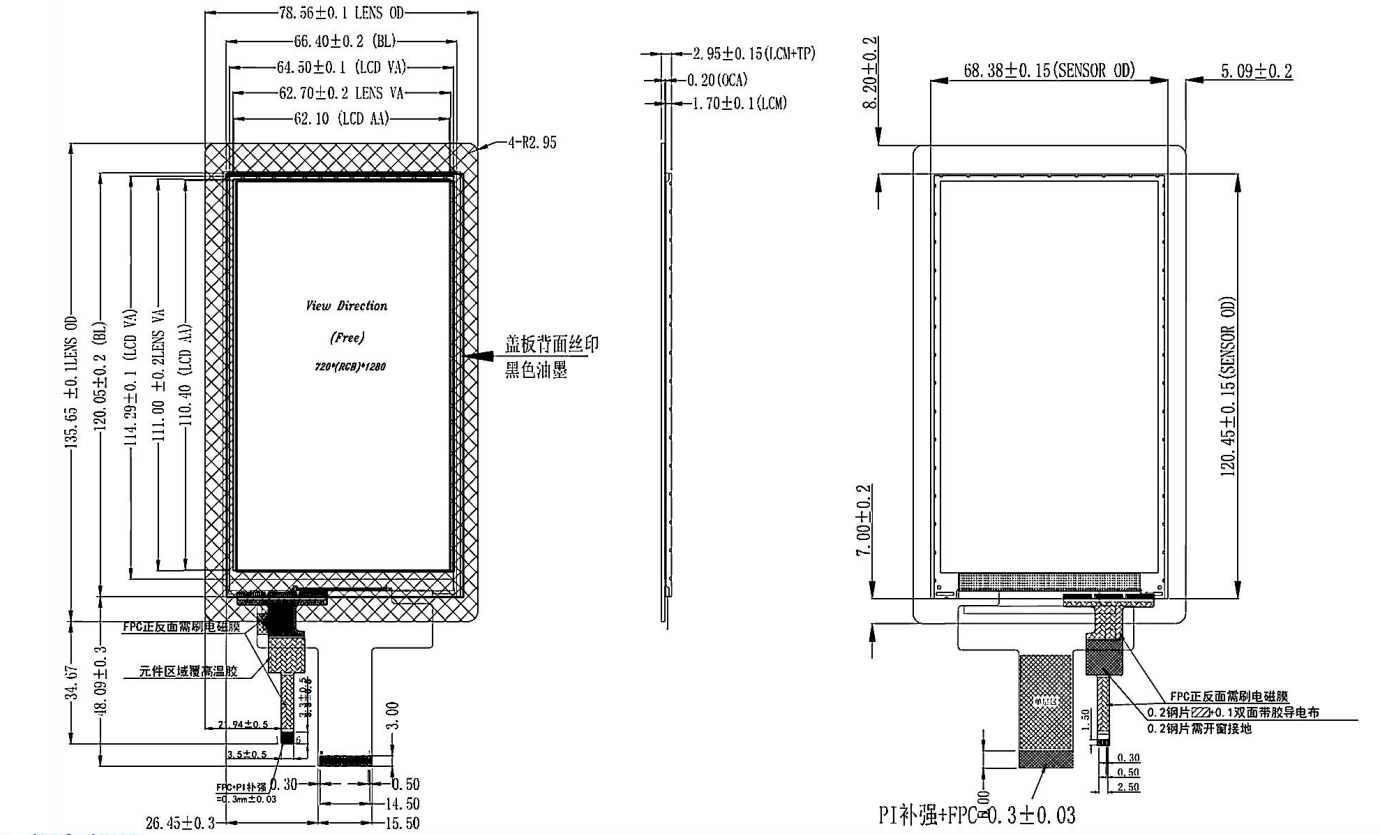

Outline Drawing



Multi Touch PCAP TFT 5 Inch Display MIPI Interface 720*1280 Pixels Low Price Garrantee





Interface Pin definition



PinNo. Symbol Function
1 NC NC
2 LEDK LED back light(Cathode)
3 NC NC
4 LEDA LED back light(Anode)
5 NC NC
6 GND Ground
7 MIPI_D0N MIPI DSI differential data
8 MIPI_D0P MIPI DSI differential data
9 GND Ground
10 MIPI D1N MIPI DSI differential data
11 MIPI D1P MIPI DSI differential data
12 GND Ground
13 MIPI_CLN MIPI DSI differential clock
14 MIPI_CLP MIPI DSI differential clock
15 GND Ground
16 MIPI D2N MIPI DSI differential data
17 MIPI D2P MIPI DSI differential data
18 GND Ground
19 MIPI_D3N MIPI DSI differential data
20 MIPI_D3P MIPI DSI differential data
21-22 GND Ground
23 NC NC
24 GND Ground
25 TE Frame synchronization signal
26 RESET external reset input
27 IOVCC( 1.8V) Power Supply 1.8V
28 VDD(2.8V) Power Supply 2.8V
29-30 GND Ground





CTP Pin Definition



1 RST Touch screen reset
2 SDA Touch screen data signal
3 SCL Touch screen clock signal
4 INT Touch screen interrupt signal
5 VDD(2.8V) Power Supply 2.8V
6 GND Ground





Optical specification



Item Symbol Condition Min Type Max Unit
White luminance (Center) Lv



Θ=0

Normal

Viewing

Angle

IBL=40mA

-- 350 -- cd/m2
Response time Tr+Tf -- 10 15 ms
Contrast ratio CR 640 800 -- --

Color

Chromaticity (CIE1931)

white Wx 0.283 0.303 0.323
Wy 0.303 0.323 0.343





Viewing Angle



Hor

ΘL





CR≥10

-- 80 --
ΘR -- 80 --



Ver

ΘU -- 80 --
ΘD -- 80 --
Brightness uniformity Avg Θ=0 80 90 -- %
Color Gamut NTSC Θ=0 -- 70 -- %
Optical View Direction ALL





TFT LCD Characteristics



Item Symbol Min. Typ. Max. Unit
Analog supply voltage VDD 2.4 2.8 3.3 V
Digital supply voltage VDDI 1.65 1.8 3.3
Input signal Voltage VIH 0.7VDDI - VDDI V
VIL GND - 0.3VDDI V





Backlight Characteristics



Item Symbol Min Typ Max Unit
LED current IL - 30 40 mA
LED voltage VL - 16.8 19.2 V
Operating LED life time Hr - 20000 40000 Hour

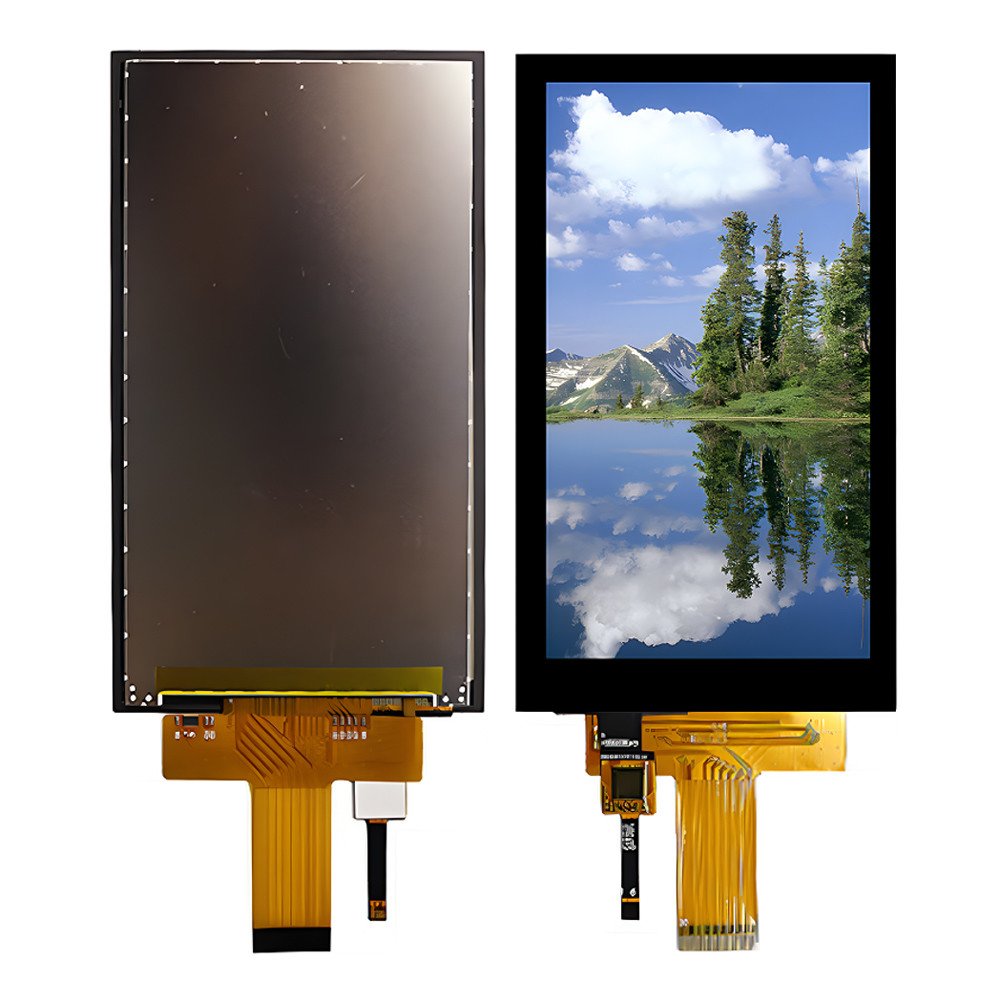

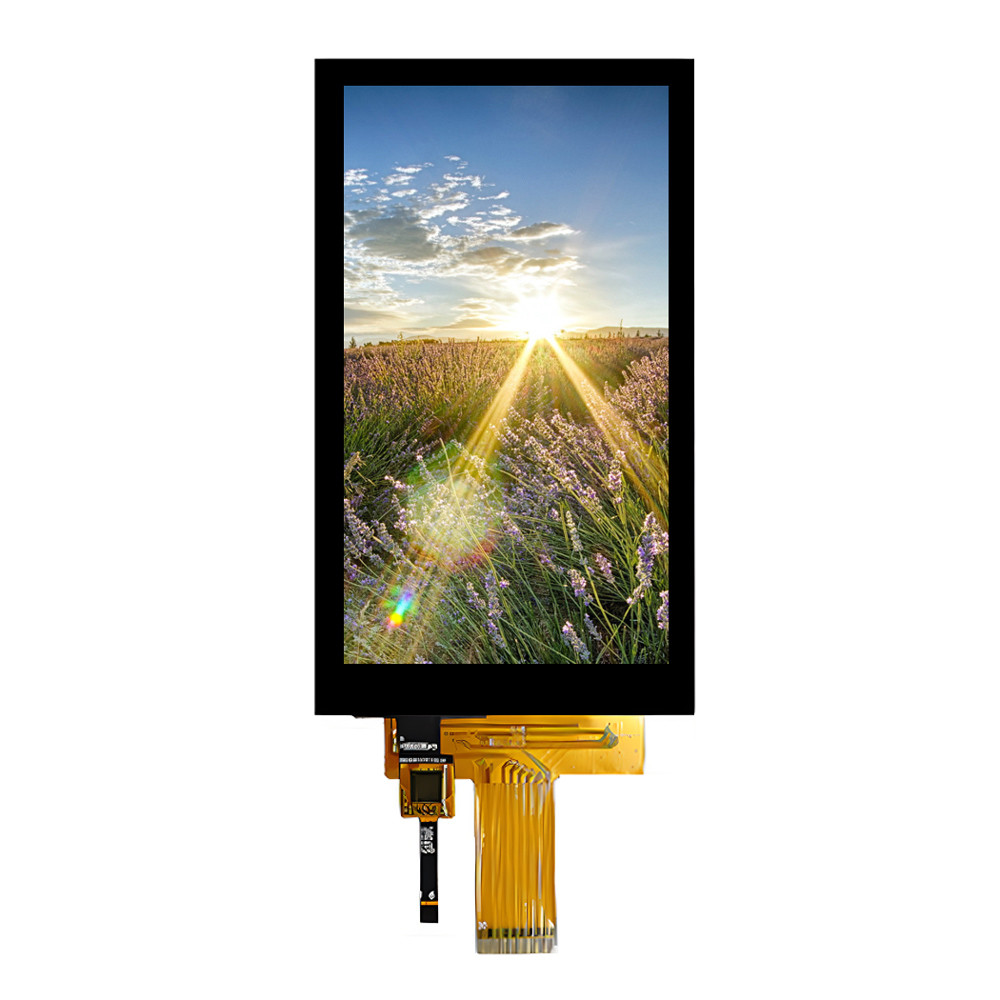

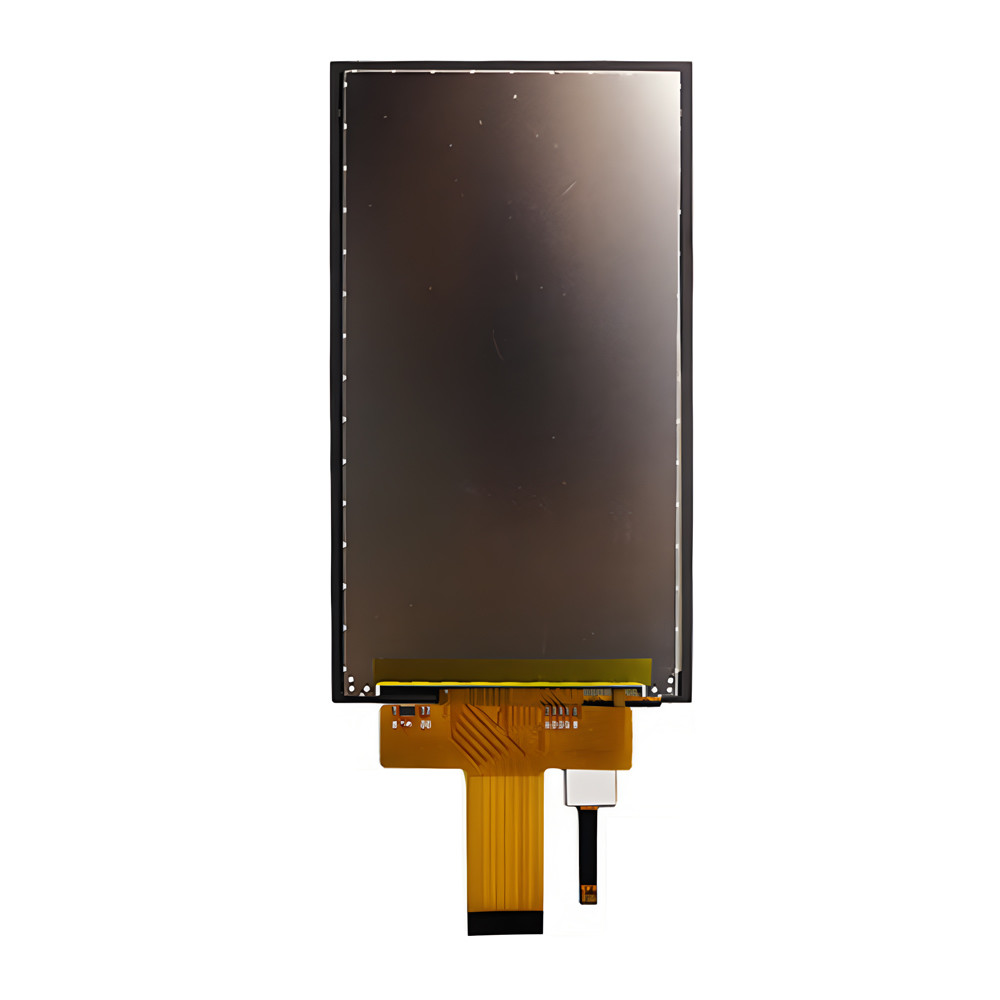

Product Image



Multi Touch PCAP TFT 5 Inch Display MIPI Interface 720*1280 Pixels Low Price GarranteeMulti Touch PCAP TFT 5 Inch Display MIPI Interface 720*1280 Pixels Low Price GarranteeMulti Touch PCAP TFT 5 Inch Display MIPI Interface 720*1280 Pixels Low Price Garrantee



Environmental / Reliability Tests



No Test Item Condition Remarks
1 High Temperature Operation Ts= +70℃ , 240hrs

Note 1

IEC60068-2-2, GB2423. 2-89

2 Low Temperature Operation Ta= -20℃ , 240hrs Note 2 IEC60068-2-1 GB2423.1-89
3 High Temperature Storage Ta= +80℃ , 240hrs IEC60068-2-2 GB2423. 2-89
4 Low Temperature Storage Ta= -30℃ , 240hrs IEC60068-2-1 GB/T2423.1-89
5 High Temperature & Humidity Storage Ta= +60℃ , 90% RH max, 160 hours

IEC60068-2-3

GB/T2423.3-2006

6 Thermal Shock (Non-operation) -30℃ 30 min ~ +80℃ 30 min Change time: 5min, 30 Cycle

Start with cold

temperature, end with

high temperature

IEC60068-2-14,

GB2423.22-87



7

Electro Static Discharge (Operation)

C=150pF, R=330 Ω , 5 points/panel

Air:±8KV, 5 times; Contact: ±4KV, 5

times; (Environment: 15℃ ~

35℃ , 30% ~ 60%, 86Kpa ~ 106Kpa)

IEC61000-4-2

GB/T17626.2-1998



8



Vibration

(Non-operation)

Frequency range: 10~55Hz, Stroke:

1.mm Sweep: 10Hz~55Hz~10Hz

2 hours for each direction of X .Y. Z.

(package condition)

IEC60068-2-6

GB/T2423.5-1995

9 Shock (Non-operation)

60G 6ms, ± X, ±Y , ± Z

3 times for each direction

IEC60068-2-27 GB/T2423.5-1995
10 Package Drop Test

Height: 80 cm, 1 corner, 3 edges,

6 surfaces

IEC60068-2-32 GB/T2423.8-1995





Facilities and Certificates
