1.5 Inch OLED Module - 128x128 Monochrome White & Blue for IoT | Best Price USA

Name: 15 Inch OLED Module 128x128 Monochrome White amp Blue for IoT Best Price USA
Brand: SAEF
Price: 1 USD

Buy cheap 1.5 Inch OLED Module - 128x128 Monochrome White & Blue for IoT | Best Price USA product

Brand Name : SAEF

Model Number : SFOS150JY-7175AN

Certification : ISO9001 / ISO14000

Place of Origin : ShenZhen / China

MOQ : 3 pcs

Price : The lowest market price guaranteed

Payment Terms : L/C, T/T, Western Union, Paypal

Supply Ability : 3000K pcs per month

Delivery Time : 1-3 weeks

Packaging Details : Standard Exportation Package

Product : 1.5-inch OLED Display

Resolution : 128 x 128

Glass Type : OLED

Optics : All Viewing Angles

Interface : I2C, SPI, 6800, 8080 Optional

Outline Dim. : 33.8 (W) x 43.7 (H) x 1.45 (T)

Active Area : 26.86 (W) x 26.86 (H)

Operating Temp : -40°C to +80°C

Pin number : 25 pins

Controller : SH1107

Drive Mode : 1/128 Duty

Connector : COG+FPC

Contrast Ratio : 2000 : 1 (Dark Room Contrast)

Compliance : REACH & RoHS Compliant

Contact Now

Elevate Your IoT Projects with the 1.5 Inch OLED Module - SFOS150JY-7175AN

Are you looking for a compact, high-resolution display solution for your IoT projects? Look no further! Our 1.5 Inch OLED Module with 128x128 resolution offers crisp, clear visuals in monochrome white and blue, perfect for a variety of applications.

Key Features:

High Resolution: 128x128 pixels ensure detailed and sharp display quality.
Monochrome Display: Available in white and blue, ideal for low-power consumption and high contrast.
Compact Size: 1.5 inches makes it perfect for space-constrained IoT devices.
Multiple Interfaces: Supports both SPI and I2C communication, ensuring compatibility with a wide range of microcontrollers.
Low Power Consumption: Ideal for battery-powered IoT devices, ensuring long-lasting performance.
Wide Viewing Angle: Provides clear visibility from multiple angles, enhancing user experience.
Best Price in the USA: Affordable without compromising on quality.

Ideal for:

IoT Devices: Smart home systems, environmental sensors, and more.
Wearable Technology: Fitness trackers, smartwatches, and other wearable gadgets.
Embedded Systems: Arduino, Raspberry Pi, and other microcontroller projects.
Industrial Use: Control panels, monitoring systems, and IoT applications.

Why Choose Our 1.5 Inch OLED Module?

Durability: High-quality materials ensure long-lasting performance.
Versatility: Suitable for a wide range of applications, from consumer electronics to industrial use.
Ease of Use: Simple setup and integration with popular platforms.
Customer Support: Dedicated support team to assist you every step of the way.

Order Now and Get the Best Price in the USA!
Contact Us: For more details or to place an order, email us at sales2@saef.com.cn

Don't miss out on this incredible offer! Upgrade your IoT projects with our 1.5 Inch OLED Module today!

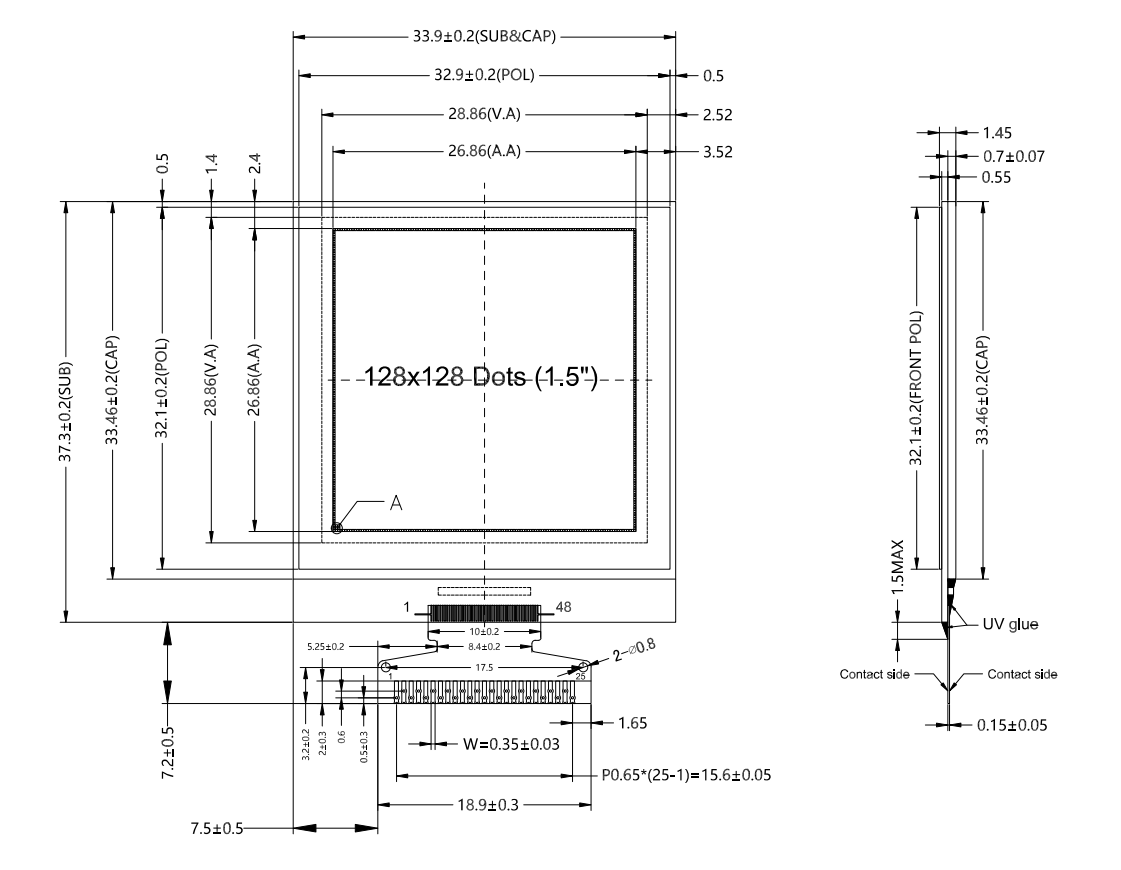

Mechanical Dimensions

Absolute Maximum Ratings

Items	Min.	Max.	Unit	Remark
Supply Voltage(VDD)	-0.3	+3.6	V	IC maximum rating IC
Supply Voltage(VPP)	-0.3	+17	V	IC maximum rating IC
Operating Temperature(TOP)	-30	80	℃	-
Storage Temperature(TST)	-40	85	℃	-

Electrical Characteristics

Items		Symbol	Min.	Typ.	Max.	Unit
Supply Voltage	Logic Supply Voltage IC	VDD	1.65	3.0	3.5	V
Supply Voltage	Operating(for OLED panel) )	VPP	12.5	13.0	13.5	V
Input Voltage	High Voltage	VIH	0.8 * VDD	-	VDD	V
Input Voltage	Low Voltage	VIL	VSS	-	0.2 * VDD	V
Output Voltage	High Voltage	VOH	0.8 * VDD	-	VDD	V
Output Voltage	Low Voltage	VOL	VSS	-	0.2 * VDD	V

Electro-Optical Characteristics

Items		Symbol	Min.	Typ.	Max.	Unit	Remark
Operating Luminance		L	80	100	-	cd/m2	100% pixels on
Power Consumption		P	-	120	150	mW	30% pixels on
Frame Frequency		Fr	-	100	-	Hz	-
Color Coordinate	Blue	CIE x	0.25	0.29	0.33	CIE1931	Darkroom
Color Coordinate	Blue	CIE y	0.29	0.33	0.37	CIE1931	Darkroom
Response Time	Rise	Tr	-	10	-	us	-
Response Time	Decay	Td	-	10	-	us	-
Contrast Ratio		Cr	10000:1	-	-	-	Darkroom
Viewing Angle		△θ	160	-	-	Degree	-
Operating Life Time		Top	20,000	-	-	Hours	L= 100 cd/m2

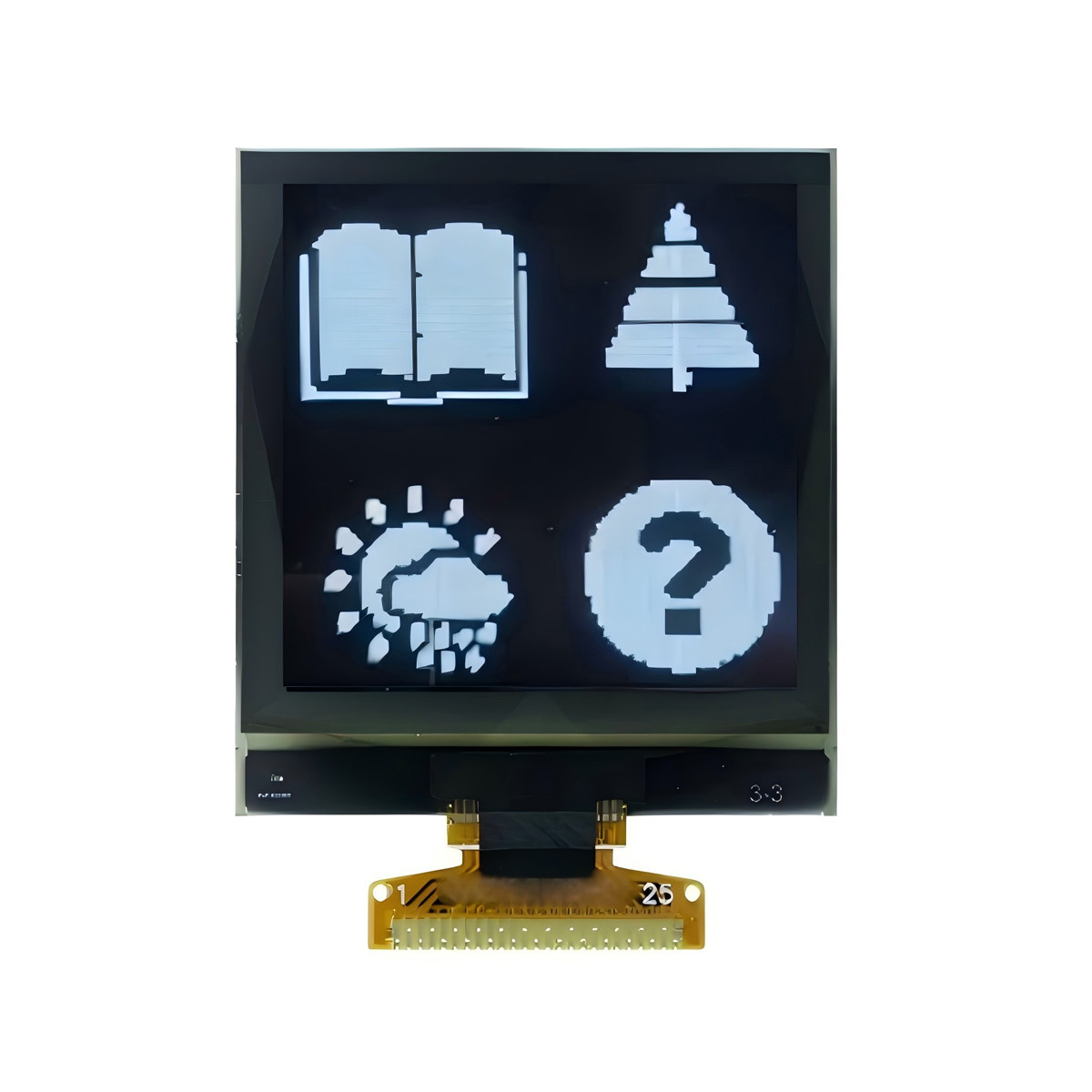

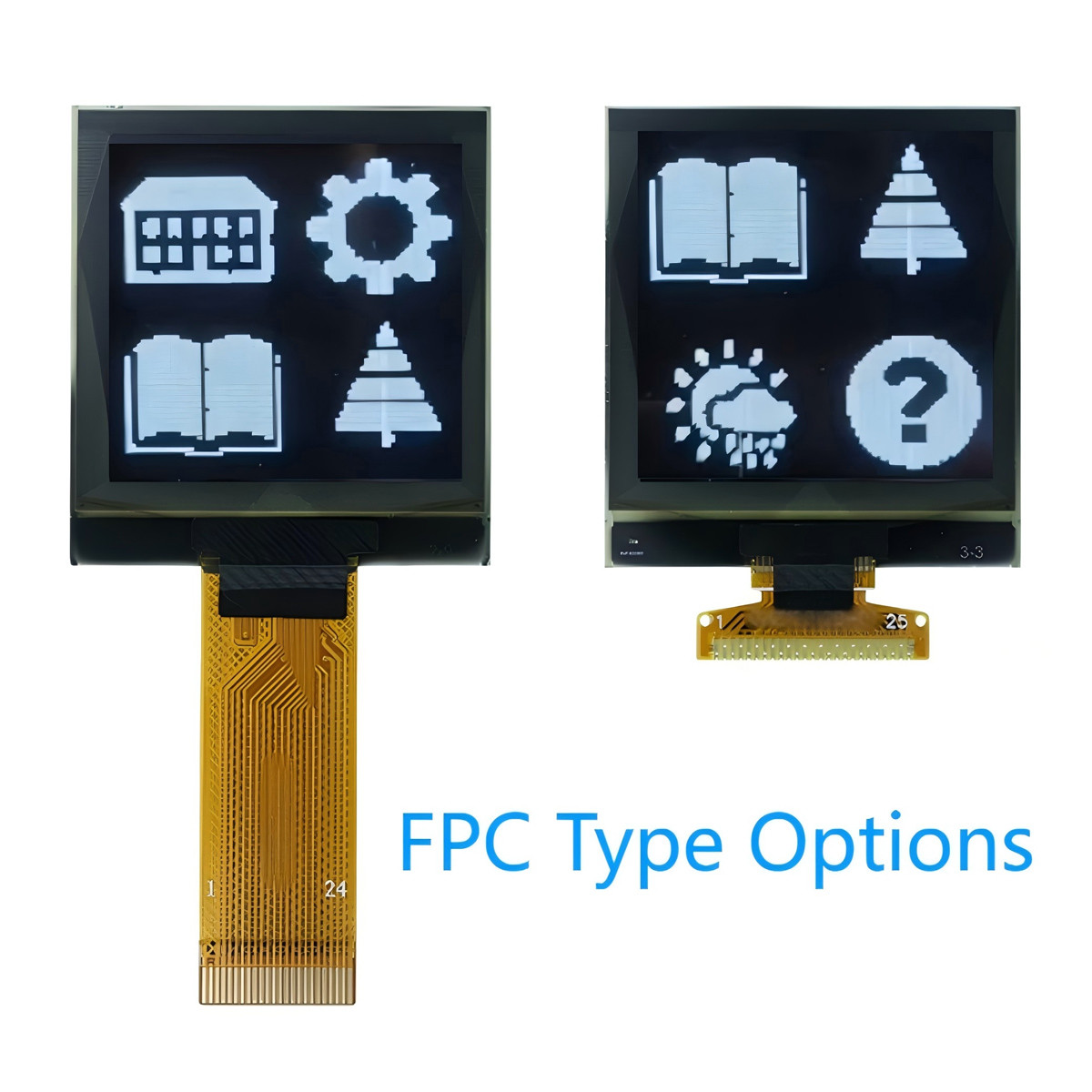

Product Image

1.5 Inch OLED Module - 128x128 Monochrome White & Blue for IoT | Best Price USA

1.5 Inch OLED Module - 128x128 Monochrome White & Blue for IoT | Best Price USA Images
